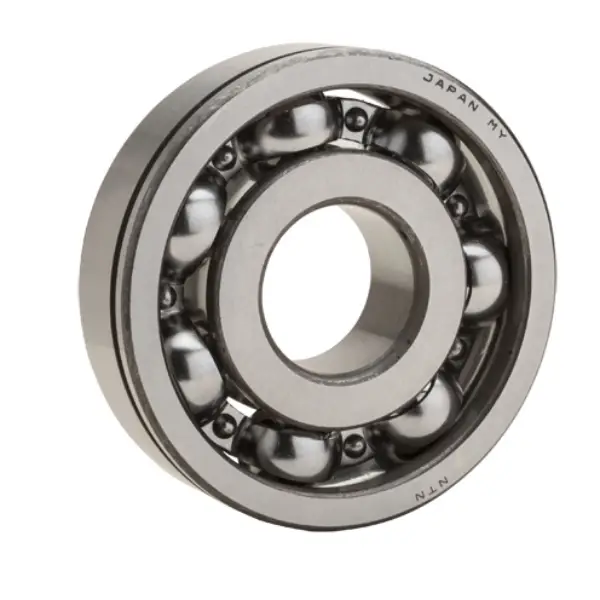

NTN 6812NC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
9400 RPM
Limiting Speed - Grease
8000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.3
Radial Internal Clearance
C3
Static Load Rating
10600 N
Dynamic Load Rating
12700 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

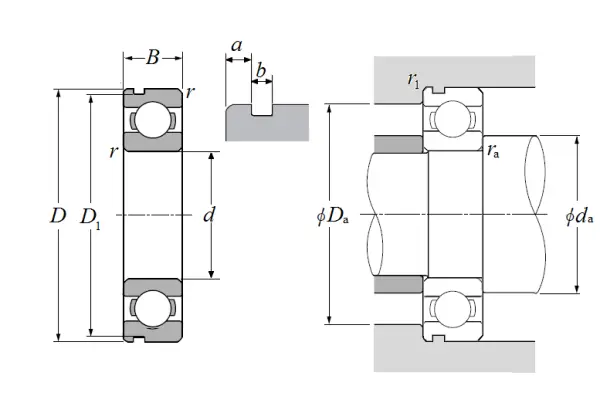

Dimensional Specifications
d
60.000 mm
D
78.000 mm
B
10.000 mm
D1
76.200 mm
a
1.700 mm
b
1.300 mm
r
0.300 mm
r1
0.300 mm
da min
62.000 mm
da max
64.500 mm
Da max
76.000 mm
ras max
0.300 mm
