NTN 6813ZN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
8700 RPM
Limiting Speed - Grease
7400 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.2
Radial Internal Clearance
CN
Static Load Rating
11000 N
Dynamic Load Rating
12800 N
Enclosure
Single Shielded
Weight
0.118 kg
Operating Temperature Range
-40 to 120 ºC

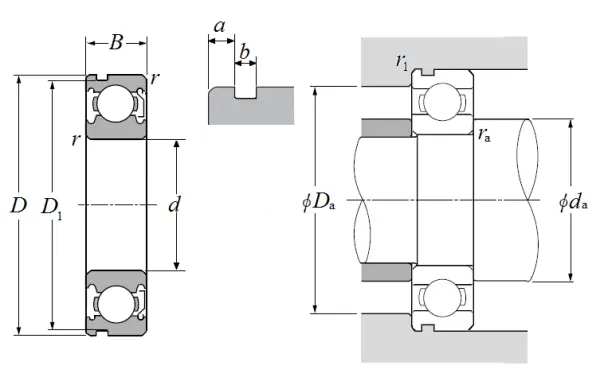

Dimensional Specifications
d
65.000 mm
D
85.000 mm
B
10.000 mm
D1
82.900 mm
a
1.700 mm
b
1.300 mm
r
0.600 mm
r1
0.500 mm
da min
69.000 mm
da max
70.000 mm
Da max
81.000 mm
ras max
0.600 mm
