NTN 6814LUN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
3800 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
16.1
Radial Internal Clearance
CN
Static Load Rating
11900 N
Dynamic Load Rating
13400 N
Enclosure
Single Sealed
Weight
0.136 kg
Operating Temperature Range
-40 to 120 ºC

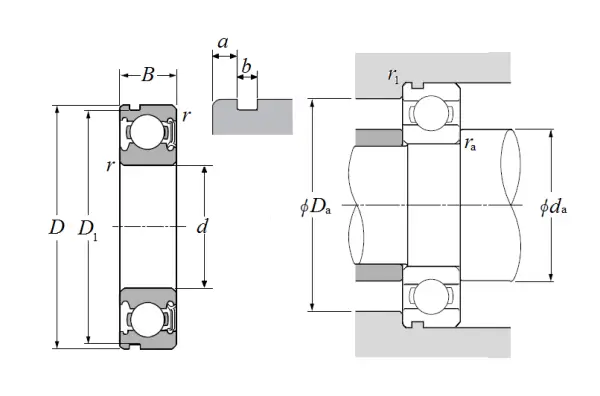

Dimensional Specifications
d
70.000 mm
D
90.000 mm
B
10.000 mm
D1
87.900 mm
a
1.700 mm
b
1.300 mm
r
0.600 mm
r1
0.500 mm
da min
74.000 mm
da max
75.500 mm
Da max
86.000 mm
ras max
0.600 mm
