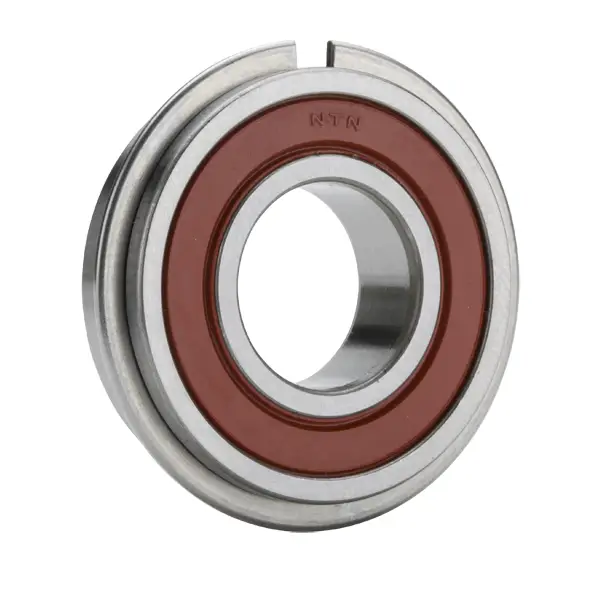

NTN 6815LLUNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
3600 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
16.0
Radial Internal Clearance
CN
Static Load Rating
12900 N
Dynamic Load Rating
13900 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

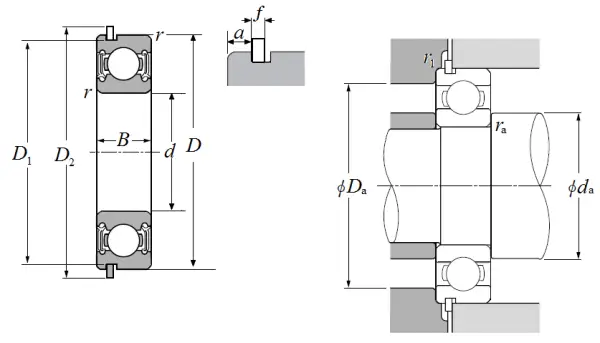

Dimensional Specifications
d
75.000 mm
D
95.000 mm
B
10.000 mm
D1
92.900 mm
D2
99.400 mm
a
1.700 mm
f
1.120 mm
r
0.600 mm
r1
0.500 mm
da min
79.000 mm
da max
80.000 mm
Da max
91.000 mm
ras max
0.600 mm
