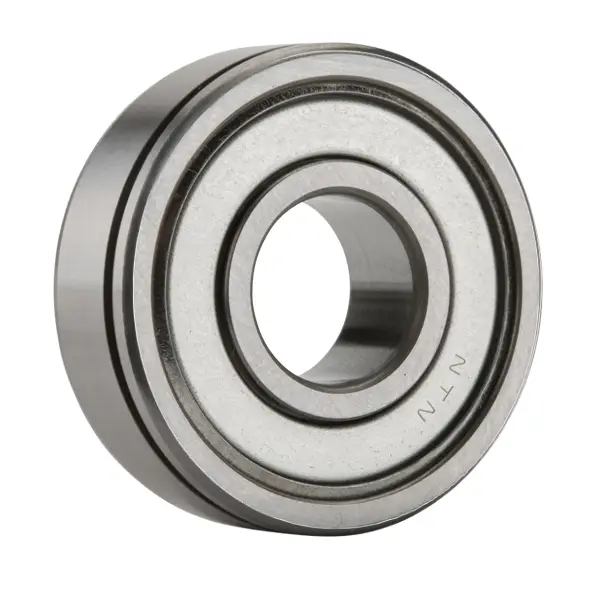

NTN 6816ZZN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
6000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.0
Radial Internal Clearance
CN
Static Load Rating
13300 N
Dynamic Load Rating
14000 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

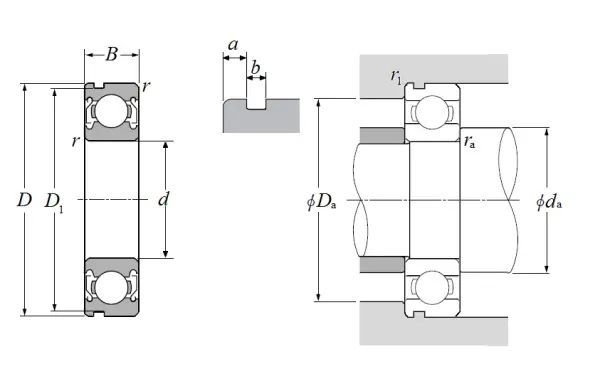

Dimensional Specifications
d
80.000 mm
D
100.000 mm
B
10.000 mm
D1
97.900 mm
a
1.700 mm
b
1.300 mm
r
0.600 mm
r1
0.500 mm
da min
84.000 mm
da max
85.000 mm
Da max
96.000 mm
ras max
0.600 mm
