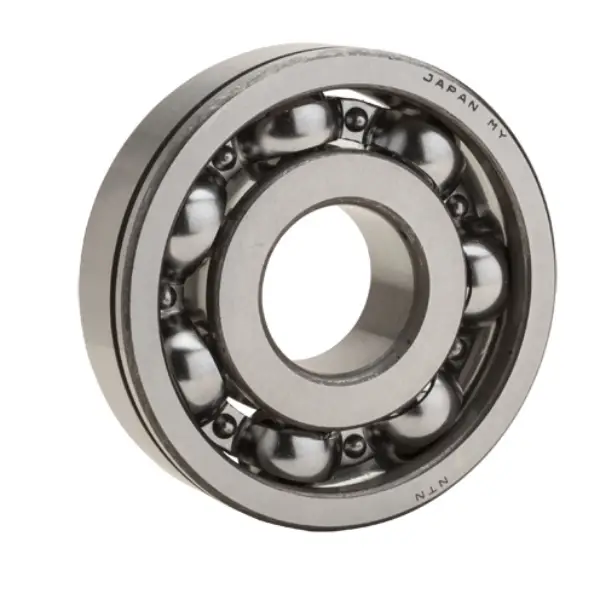

NTN 6818NC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
6300 RPM
Limiting Speed - Grease
5400 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.1
Radial Internal Clearance
C3
Static Load Rating
19700 N
Dynamic Load Rating
21100 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

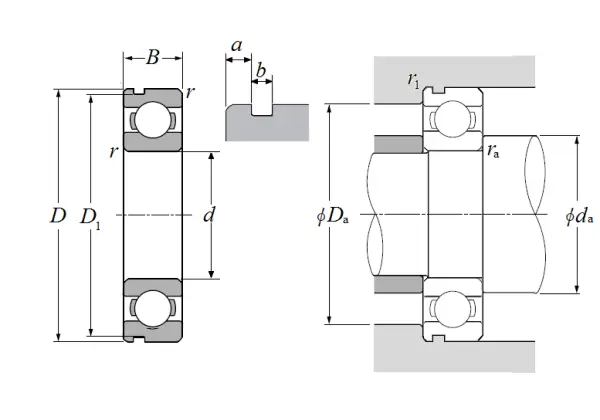

Dimensional Specifications
d
90.000 mm
D
115.000 mm
B
13.000 mm
D1
112.600 mm
a
2.100 mm
b
1.300 mm
r
1.000 mm
r1
0.500 mm
da min
95.000 mm
da max
96.000 mm
Da max
110.000 mm
ras max
1.000 mm
