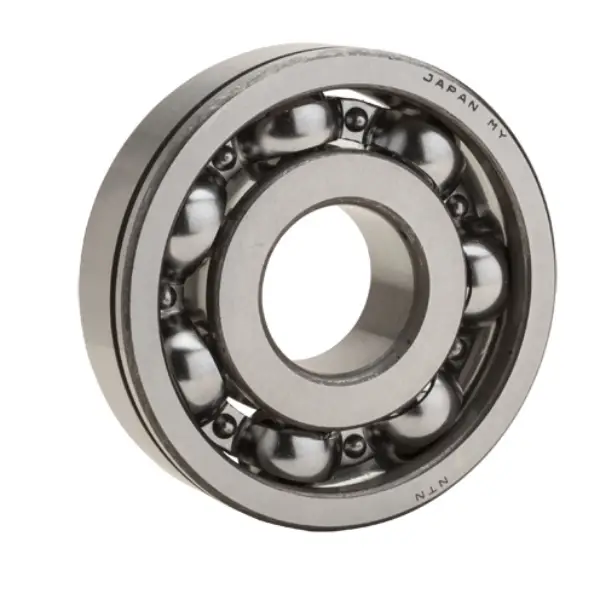

NTN 6820NC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5600 RPM
Limiting Speed - Grease
4800 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.0
Radial Internal Clearance
C3
Static Load Rating
21200 N
Dynamic Load Rating
21700 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
100.000 mm
D
125.000 mm
B
13.000 mm
D1
122.600 mm
a
2.100 mm
b
1.300 mm
r
1.000 mm
r1
0.500 mm
da min
105.000 mm
da max
106.000 mm
Da max
120.000 mm
ras max
1.000 mm
