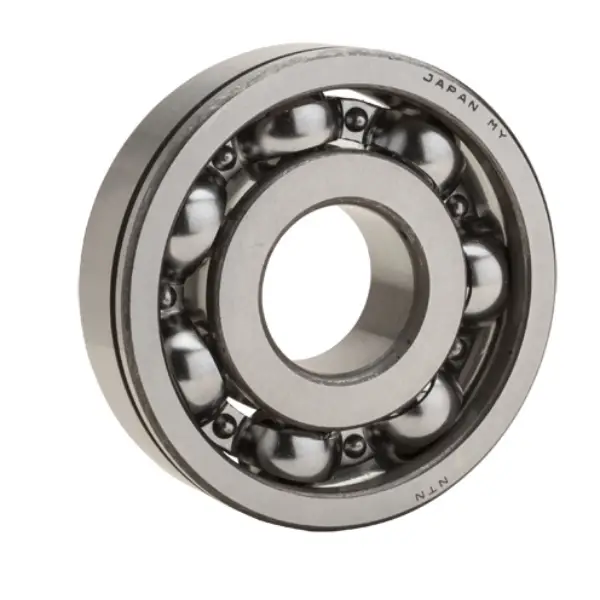

NTN 6821NC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5400 RPM
Limiting Speed - Grease
4600 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
15.9
Radial Internal Clearance
C3
Static Load Rating
22000 N
Dynamic Load Rating
22000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
105.000 mm
D
130.000 mm
B
13.000 mm
D1
127.600 mm
a
2.100 mm
b
1.300 mm
r
1.000 mm
r1
0.500 mm
da min
110.000 mm
da max
0.000 mm
Da max
125.000 mm
ras max
1.000 mm
