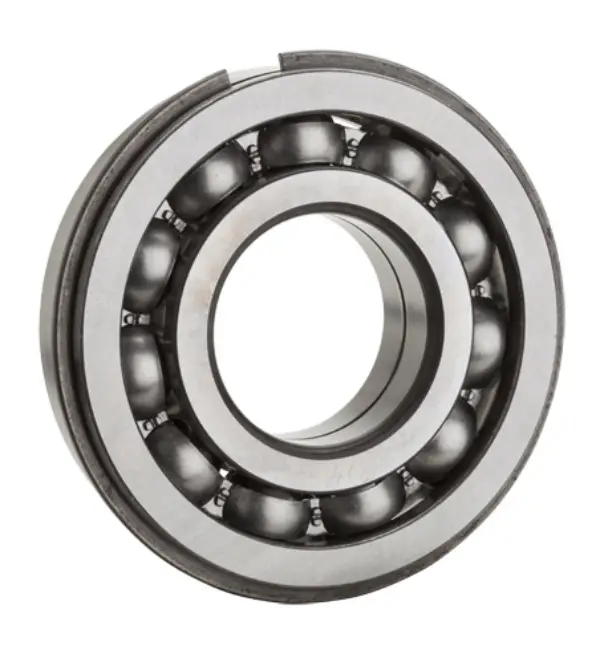

NTN 6822NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5100 RPM
Limiting Speed - Grease
4300 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
16.0
Radial Internal Clearance
C3
Static Load Rating
28200 N
Dynamic Load Rating
27500 N
Enclosure
Open
Weight
0.513 kg
Operating Temperature Range
-40 to 120 ºC

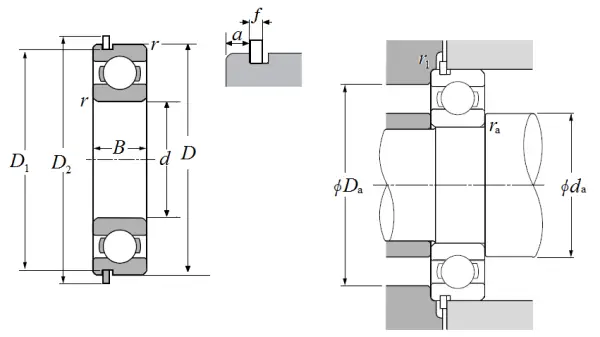

Dimensional Specifications
d
110.000 mm
D
140.000 mm
B
16.000 mm
D1
137.600 mm
D2
145.700 mm
a
2.500 mm
f
1.700 mm
r
1.000 mm
r1
0.500 mm
da min
115.000 mm
Da max
135.000 mm
ras max
1.000 mm
