NTN 6828N
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4000 RPM
Limiting Speed - Grease
3400 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.0
Radial Internal Clearance
CN
Static Load Rating
44500 N
Dynamic Load Rating
42500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

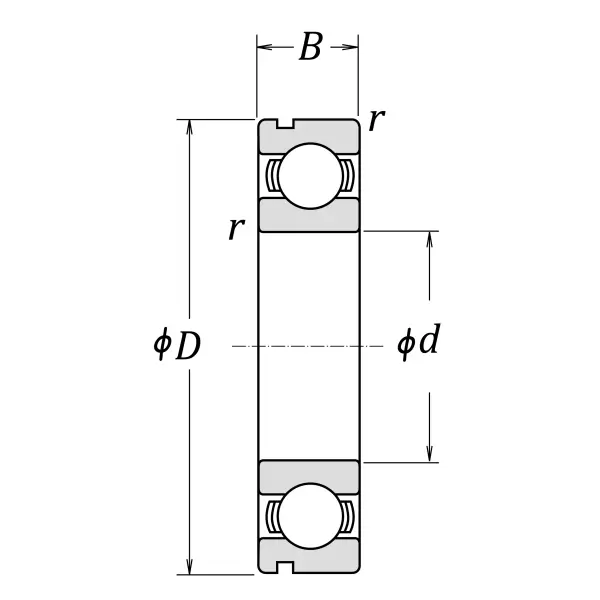

Dimensional Specifications
d
140.000 mm
D
175.000 mm
B
18.000 mm
D1
171.800 mm
a
3.300 mm
b
1.900 mm
r
1.100 mm
r1
0.500 mm
da min
146.500 mm
da max
0.000 mm
Da max
168.500 mm
ras max
1.000 mm
