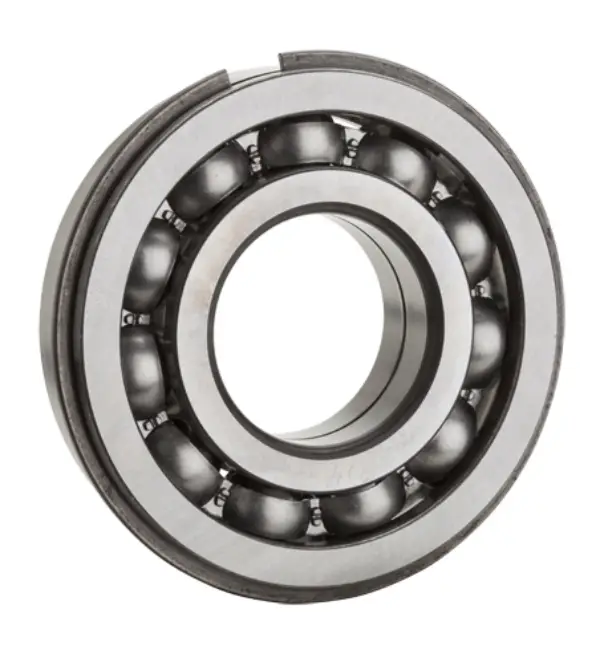

NTN 6828NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4000 RPM
Limiting Speed - Grease
3400 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
16.0
Radial Internal Clearance
C3
Static Load Rating
44500 N
Dynamic Load Rating
42500 N
Enclosure
Open
Weight
0.828 kg
Operating Temperature Range
-40 to 120 ºC

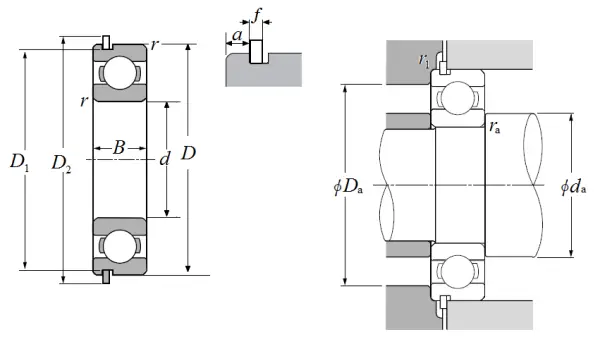

Dimensional Specifications
d
140.000 mm
D
175.000 mm
B
18.000 mm
D1
171.800 mm
D2
181.500 mm
a
3.300 mm
f
1.700 mm
r
1.100 mm
r1
0.500 mm
da min
146.500 mm
Da max
168.500 mm
ras max
1.000 mm
