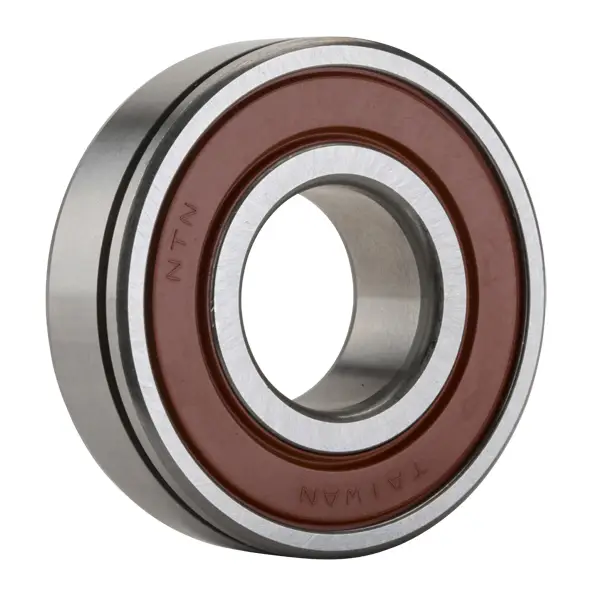

NTN 6900LLUNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
21000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
14.0
Radial Internal Clearance
C3
Static Load Rating
1270 N
Dynamic Load Rating
2990 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

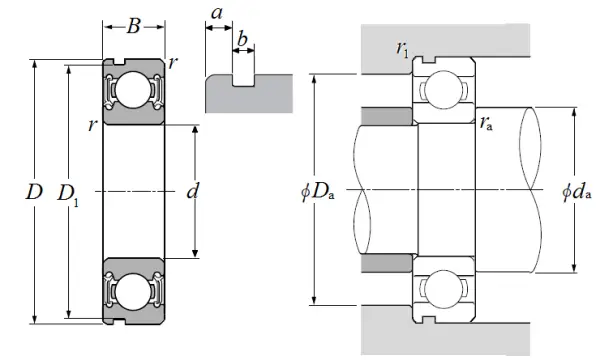

Dimensional Specifications
d
10.000 mm
D
22.000 mm
B
6.000 mm
D1
20.800 mm
a
1.050 mm
b
0.800 mm
r
0.300 mm
r1
0.300 mm
da min
12.000 mm
da max
13.000 mm
Da max
20.000 mm
ras max
0.300 mm
