NTN 6901LB
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
32000 RPM
Limiting Speed - Grease
27000 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
22.0
Radial Internal Clearance
CN
Static Load Rating
1460 N
Dynamic Load Rating
3200 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

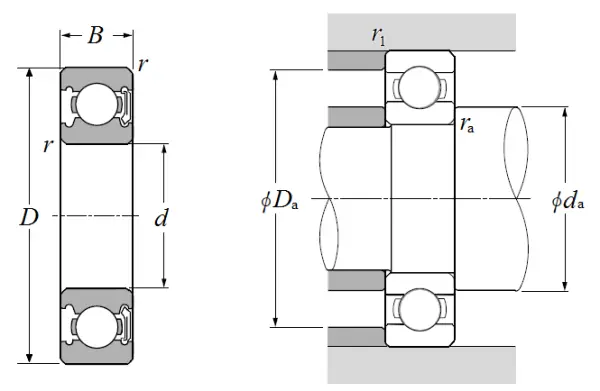

Dimensional Specifications
d
12.000 mm
D
24.000 mm
B
6.000 mm
r
0.300 mm
r1
0.300 mm
da min
14.000 mm
da max
15.000 mm
Da max
22.000 mm
ras max
0.300 mm
