NTN 6905LUN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
9800 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
15.4
Radial Internal Clearance
CN
Static Load Rating
4550 N
Dynamic Load Rating
7800 N
Enclosure
Single Sealed
Weight
0.044 kg
Operating Temperature Range
-40 to 120 ºC

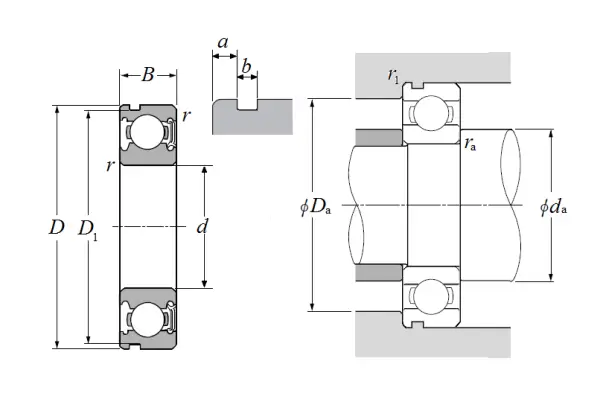

Dimensional Specifications
d
25.000 mm
D
42.000 mm
B
9.000 mm
D1
40.700 mm
a
1.700 mm
b
0.950 mm
r
0.300 mm
r1
0.300 mm
da min
27.000 mm
da max
29.000 mm
Da max
40.000 mm
ras max
0.300 mm
