NTN 6906LB
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
17000 RPM
Limiting Speed - Grease
14000 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
45.0
Radial Internal Clearance
CN
Static Load Rating
5000 N
Dynamic Load Rating
8000 N
Enclosure
Single Sealed
Weight
0.043 kg
Operating Temperature Range
-40 to 120 ºC

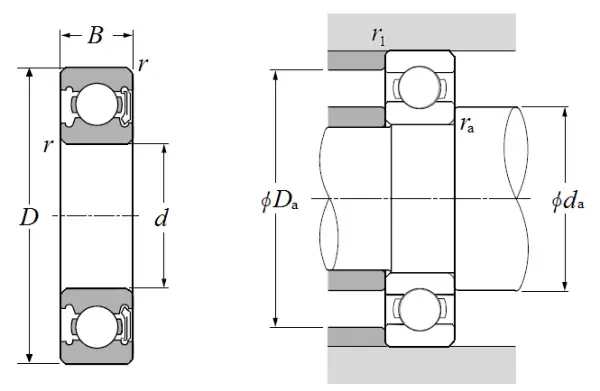

Dimensional Specifications
d
30.000 mm
D
47.000 mm
B
9.000 mm
r
0.300 mm
r1
0.300 mm
da min
32.000 mm
da max
34.000 mm
Da max
45.000 mm
ras max
0.300 mm
