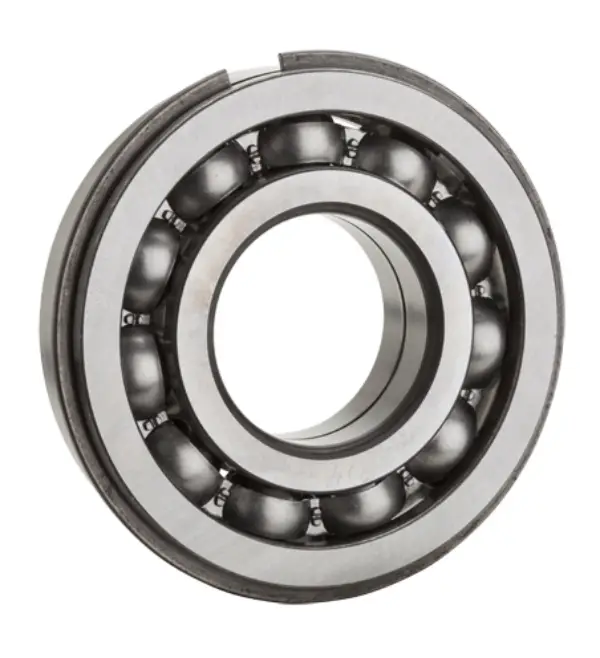

NTN 6908NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
11000 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
15.8
Radial Internal Clearance
C3
Static Load Rating
8900 N
Dynamic Load Rating
13500 N
Enclosure
Open
Weight
0.113 kg
Operating Temperature Range
-40 to 120 ºC

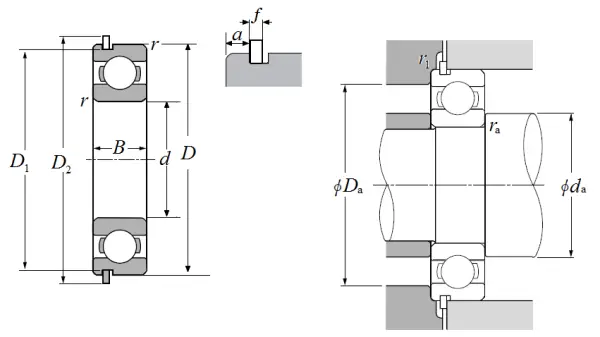

Dimensional Specifications
d
40.000 mm
D
62.000 mm
B
12.000 mm
D1
60.700 mm
D2
64.800 mm
a
1.700 mm
f
0.850 mm
r
0.600 mm
r1
0.500 mm
da min
44.000 mm
da max
45.000 mm
Da max
58.000 mm
ras max
0.600 mm
