NTN 6910ZC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
8900 RPM
Precision
ISO Class 0
Configuration
One
Factor
68.0
Radial Internal Clearance
C3
Static Load Rating
11200 N
Dynamic Load Rating
14900 N
Enclosure
Single Shielded
Weight
0.129 kg
Operating Temperature Range
-40 to 120 ºC

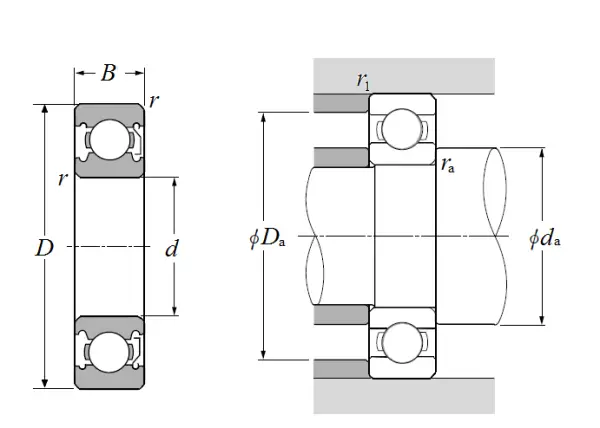

Dimensional Specifications
d
50.000 mm
D
72.000 mm
B
12.000 mm
r
0.600 mm
r1
0.500 mm
da min
54.000 mm
da max
55.500 mm
Da max
68.000 mm
ras max
0.600 mm
