NTN 6911NR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
9600 RPM
Limiting Speed - Grease
8200 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
16.2
Radial Internal Clearance
CN
Static Load Rating
13300 N
Dynamic Load Rating
17700 N
Enclosure
Open
Weight
0.183 kg
Operating Temperature Range
-40 to 120 ºC

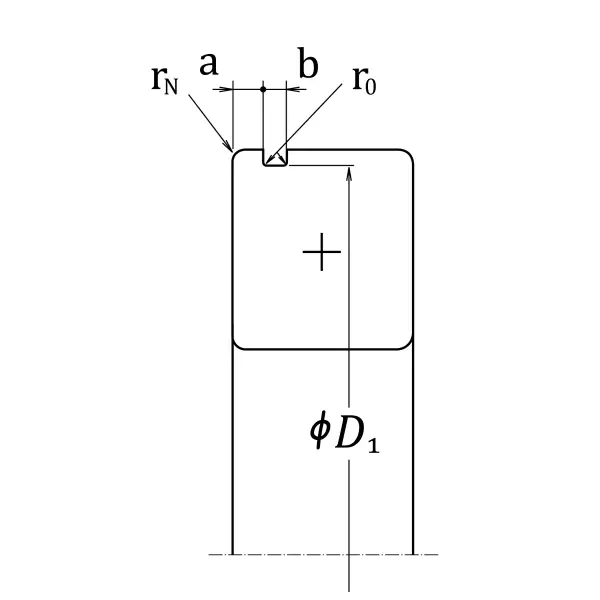

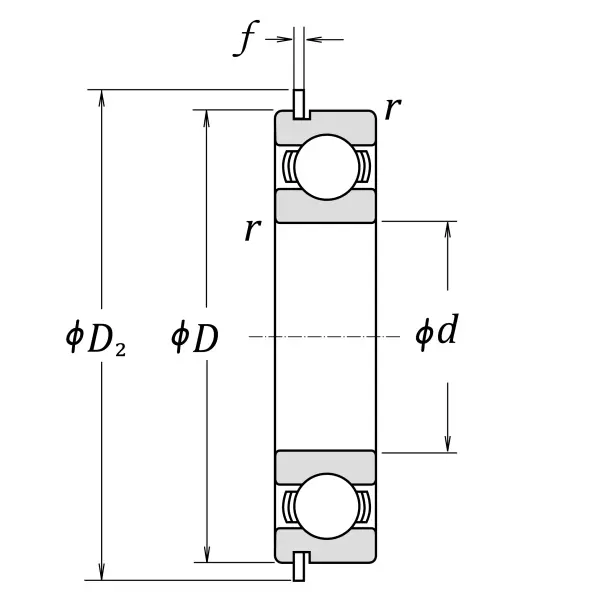

Dimensional Specifications
d
55.000 mm
D
80.000 mm
B
13.000 mm
D1
77.900 mm
D2
84.400 mm
a
2.100 mm
f
1.120 mm
r
1.000 mm
r1
0.500 mm

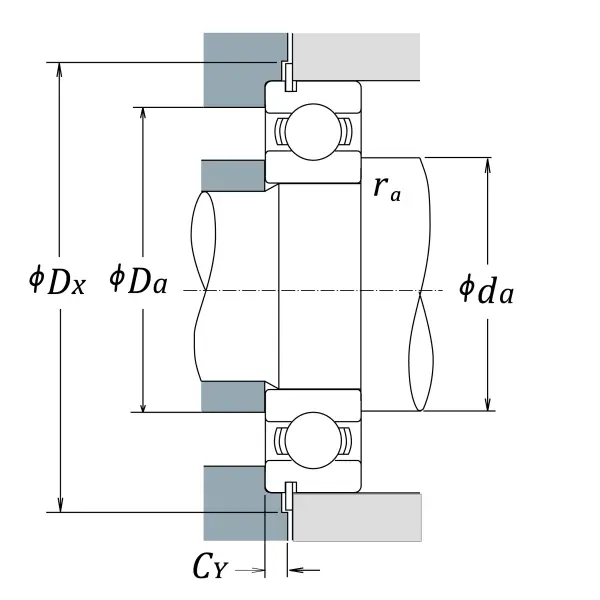

da min
60.000 mm
da max
61.500 mm
Da max
75.000 mm
ras max
1.000 mm
