NTN 6912LUNRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
4300 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
16.4
Radial Internal Clearance
C3
Static Load Rating
14300 N
Dynamic Load Rating
18200 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

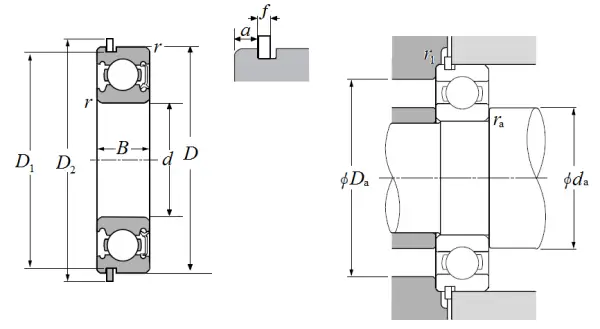

Dimensional Specifications
d
60.000 mm
D
85.000 mm
B
13.000 mm
D1
82.900 mm
D2
89.400 mm
a
2.100 mm
f
1.120 mm
r
1.000 mm
r1
0.500 mm
da min
65.000 mm
da max
66.500 mm
Da max
80.000 mm
ras max
1.000 mm
