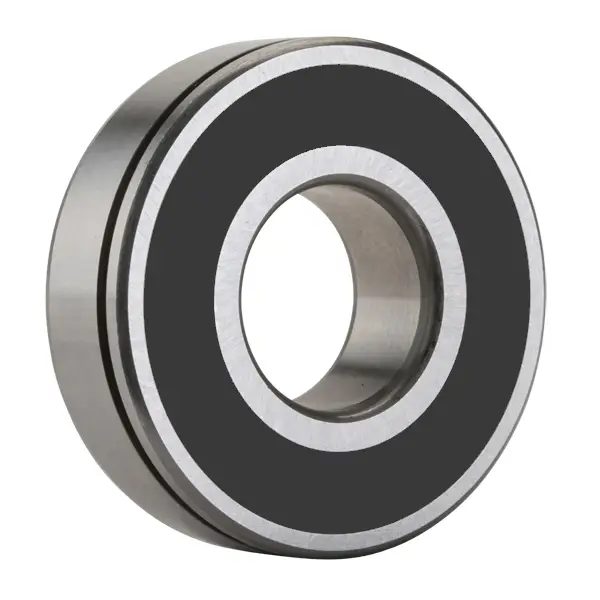

NTN 6913LLBN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
7000 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
16.6
Radial Internal Clearance
CN
Static Load Rating
16100 N
Dynamic Load Rating
19300 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

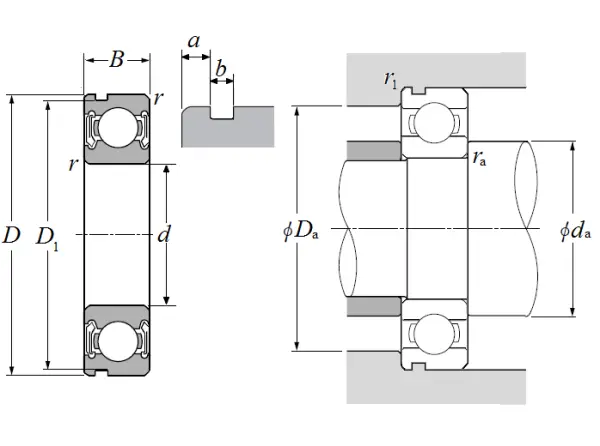

Dimensional Specifications
d
65.000 mm
D
90.000 mm
B
13.000 mm
D1
87.900 mm
a
2.100 mm
b
1.300 mm
r
1.000 mm
r1
0.500 mm
da min
70.000 mm
da max
71.500 mm
Da max
85.000 mm
ras max
1.000 mm
