NTN 6913NR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
8200 RPM
Limiting Speed - Grease
7000 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
16.6
Radial Internal Clearance
CN
Static Load Rating
16100 N
Dynamic Load Rating
19300 N
Enclosure
Open
Weight
0.208 kg
Operating Temperature Range
-40 to 120 ºC

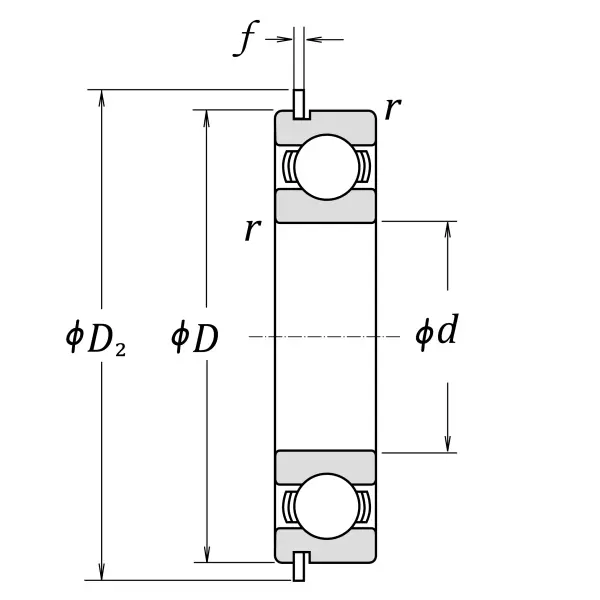

Dimensional Specifications
d
65.000 mm
D
90.000 mm
B
13.000 mm

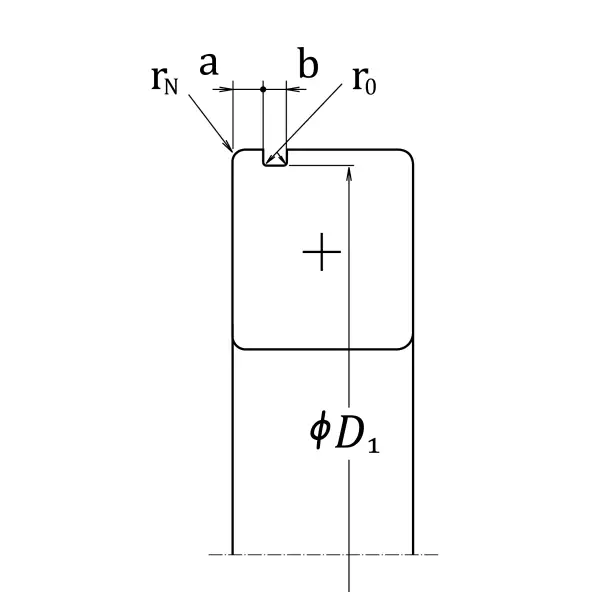

D1
87.900 mm
D2
94.400 mm
a
2.100 mm
f
1.120 mm
r
1.000 mm
r1
0.500 mm

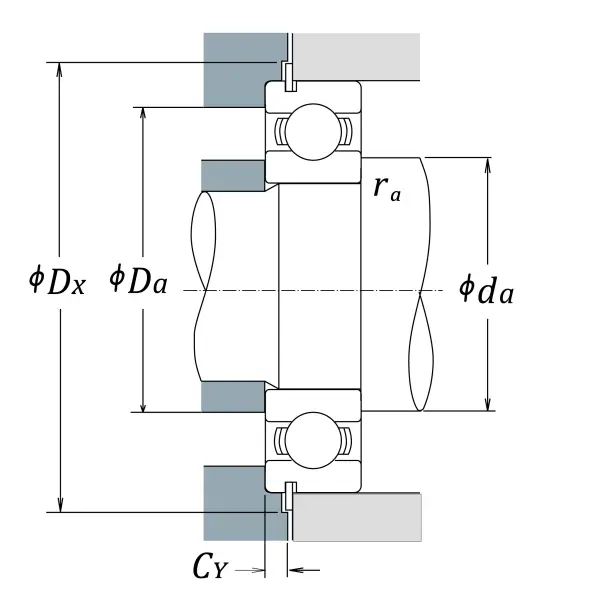

da min
70.000 mm
da max
71.500 mm
Da max
85.000 mm
ras max
1.000 mm
