NTN 6914LUN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
3700 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
16.3
Radial Internal Clearance
CN
Static Load Rating
21200 N
Dynamic Load Rating
26300 N
Enclosure
Single Sealed
Weight
0.335 kg
Operating Temperature Range
-40 to 120 ºC

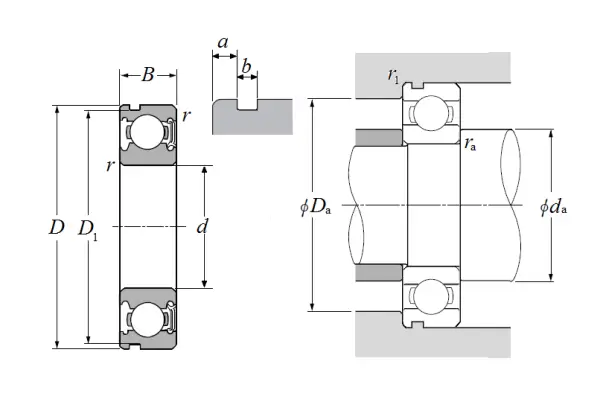

Dimensional Specifications
d
70.000 mm
D
100.000 mm
B
16.000 mm
D1
97.900 mm
a
2.500 mm
b
1.300 mm
r
1.000 mm
r1
0.500 mm
da min
75.000 mm
da max
77.500 mm
Da max
95.000 mm
ras max
1.000 mm
