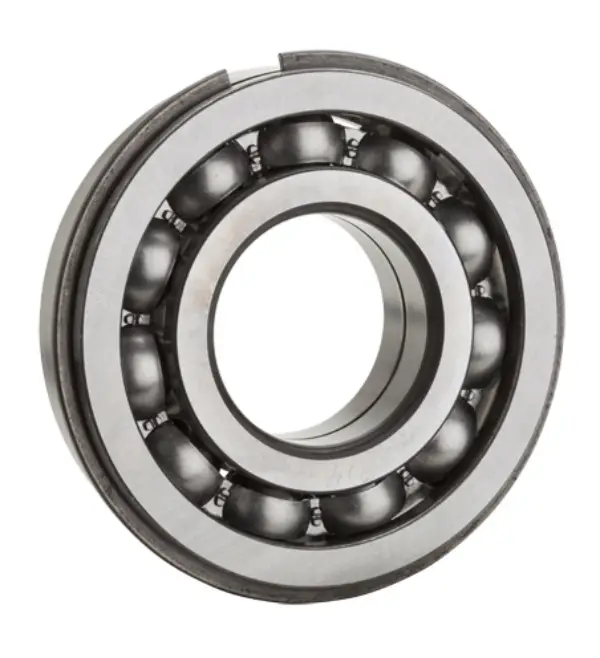

NTN 6914NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
7700 RPM
Limiting Speed - Grease
6500 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
16.3
Radial Internal Clearance
C3
Static Load Rating
21200 N
Dynamic Load Rating
26300 N
Enclosure
Open
Weight
0.335 kg
Operating Temperature Range
-40 to 120 ºC

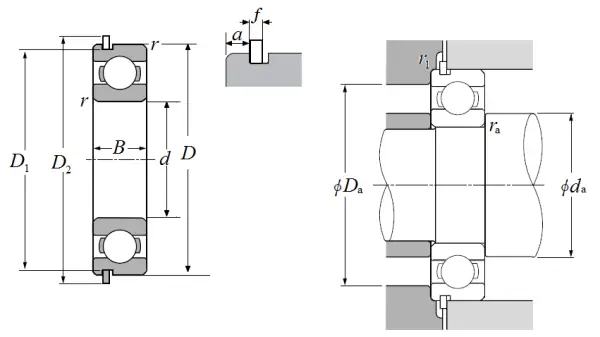

Dimensional Specifications
d
70.000 mm
D
100.000 mm
B
16.000 mm
D1
97.900 mm
D2
104.400 mm
a
2.500 mm
f
1.120 mm
r
1.000 mm
r1
0.500 mm
da min
75.000 mm
da max
77.500 mm
Da max
95.000 mm
ras max
1.000 mm
