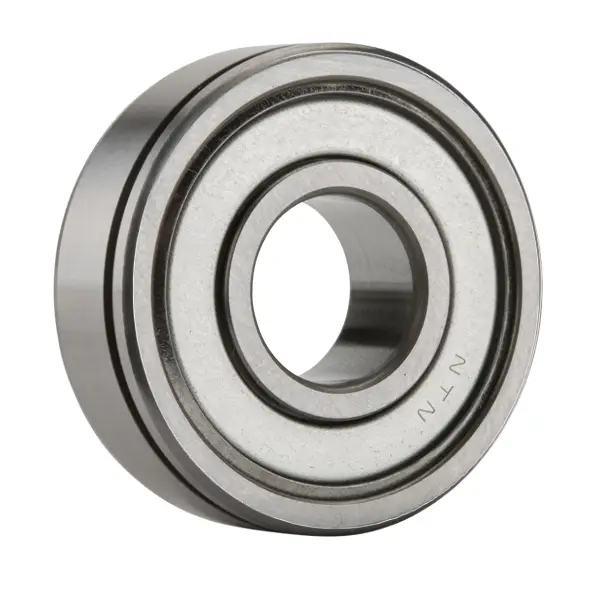

NTN 6915ZZN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
6100 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.5
Radial Internal Clearance
CN
Static Load Rating
22600 N
Dynamic Load Rating
27000 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

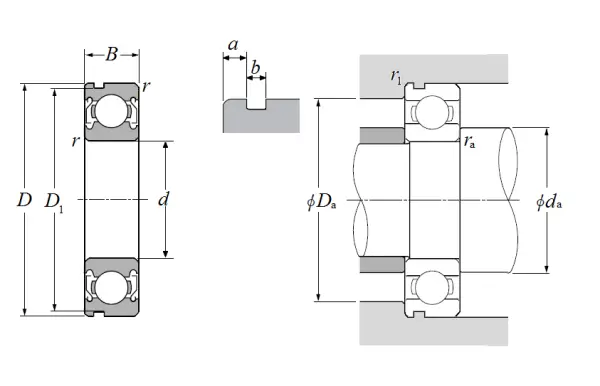

Dimensional Specifications
d
75.000 mm
D
105.000 mm
B
16.000 mm
D1
102.600 mm
a
2.500 mm
b
1.300 mm
r
1.000 mm
da min
80.000 mm
da max
82.500 mm
Da max
100.000 mm
ras max
1.000 mm
