NTN 6916LUNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
3200 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
16.6
Radial Internal Clearance
C3
Static Load Rating
24000 N
Dynamic Load Rating
27600 N
Enclosure
Single Sealed
Weight
0.379 kg
Operating Temperature Range
-40 to 120 ºC

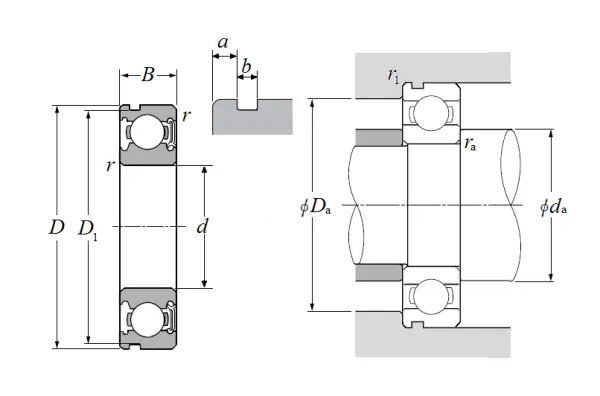

Dimensional Specifications
d
80.000 mm
D
110.000 mm
B
16.000 mm
D1
107.600 mm
a
2.500 mm
b
1.300 mm
r
1.000 mm
r1
0.500 mm
da min
85.000 mm
da max
88.000 mm
Da max
105.000 mm
ras max
1.000 mm
