NTN 6916ZNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
6700 RPM
Limiting Speed - Grease
5700 RPM
Precision
ISO Class 0
Configuration
One
Factor
16.6
Radial Internal Clearance
CN
Static Load Rating
24000 N
Dynamic Load Rating
27600 N
Enclosure
Single Shielded
Operating Temperature Range
-40 to 120 ºC

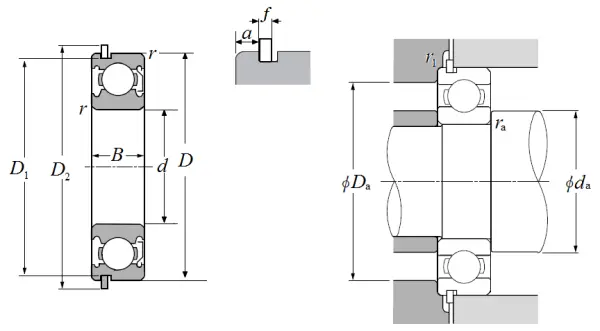

Dimensional Specifications
d
80.000 mm
D
110.000 mm
B
16.000 mm
D1
107.600 mm
D2
115.700 mm
a
2.500 mm
f
1.120 mm
r
1.000 mm
r1
0.500 mm
da min
85.000 mm
da max
88.000 mm
Da max
105.000 mm
ras max
1.000 mm
