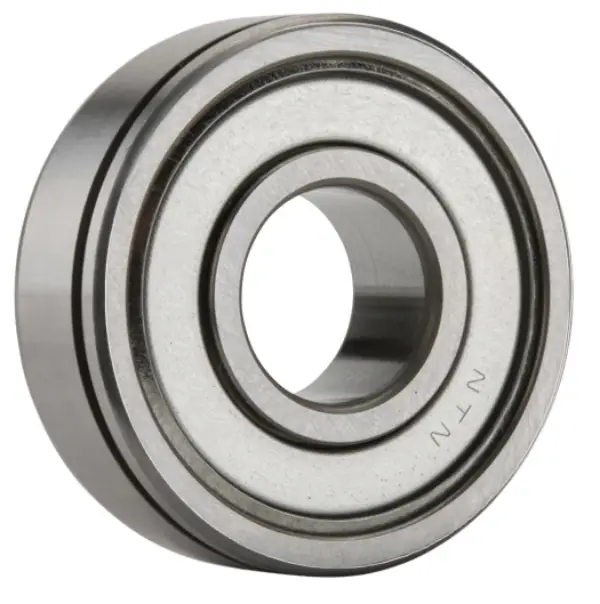

NTN 6922ZNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
4800 RPM
Limiting Speed - Grease
4100 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.6
Radial Internal Clearance
C3
Static Load Rating
44500 N
Dynamic Load Rating
48500 N
Enclosure
Single Shielded
Weight
0.862 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
110.000 mm
D
150.000 mm
B
20.000 mm
D1
147.600 mm
a
3.300 mm
b
1.900 mm
r
1.100 mm
r1
0.500 mm
da min
116.500 mm
da max
120.000 mm
Da max
143.500 mm
ras max
1.000 mm
