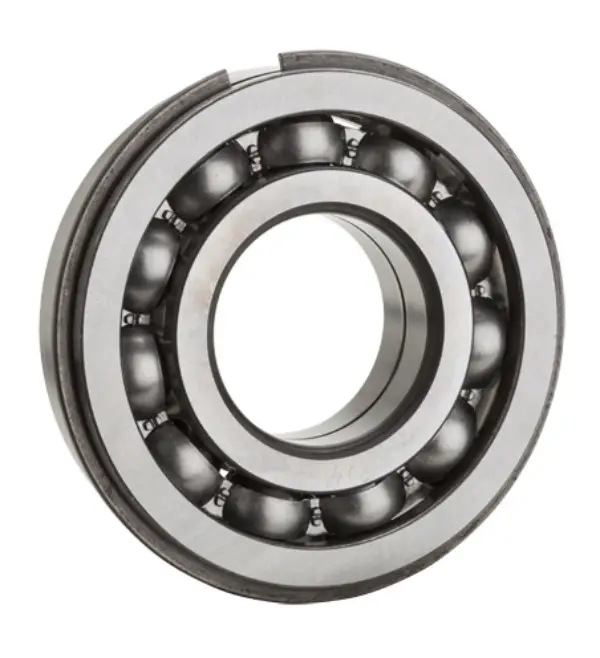

NTN 6924NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4400 RPM
Limiting Speed - Grease
3800 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
16.5
Radial Internal Clearance
C3
Static Load Rating
54000 N
Dynamic Load Rating
59000 N
Enclosure
Open
Weight
1.192 kg
Operating Temperature Range
-40 to 120 ºC

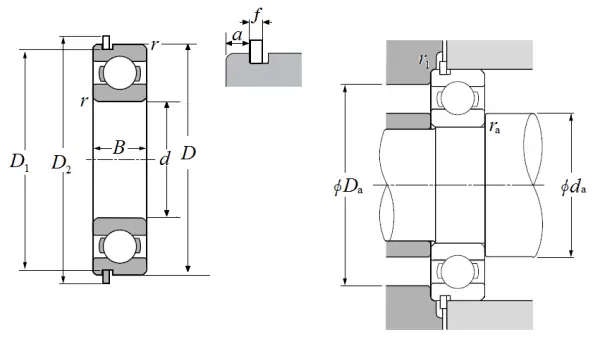

Dimensional Specifications
d
120.000 mm
D
165.000 mm
B
22.000 mm
D1
161.800 mm
D2
171.500 mm
a
3.700 mm
f
1.700 mm
r
1.100 mm
r1
0.500 mm
da min
126.500 mm
Da max
158.500 mm
ras max
1.000 mm
