NTN 695
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
47000 RPM
Limiting Speed - Grease
40000 RPM
Precision
Class 0
Configuration
One
Factor
13.4
Radial Internal Clearance
CN
Static Load Rating
430 N
Dynamic Load Rating
1190 N
Enclosure
Open
Weight
0.002 kg
Operating Temperature Range
-40 to 120 ºC

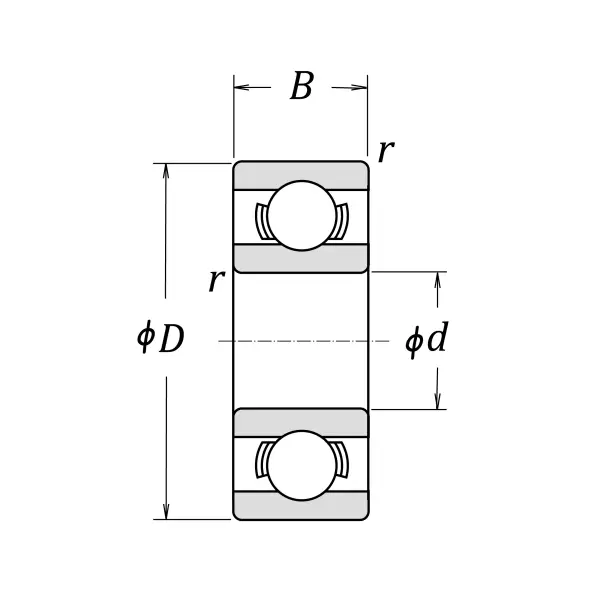

Dimensional Specifications
d
5.000 mm
D
13.000 mm
B
4.000 mm
r
0.200 mm
ras max
0.200 mm
