NTN 698
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Ball Material
Steel
Configuration
One
Static Load Rating
865 N
Dynamic Load Rating
2200 N
Enclosure
Open

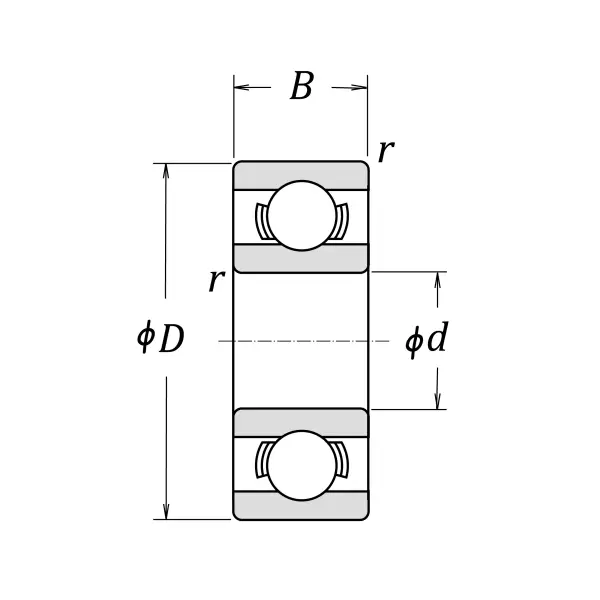

Dimensional Specifications
d
8.000 mm
D
19.000 mm
B
6.000 mm
r
0.300 mm

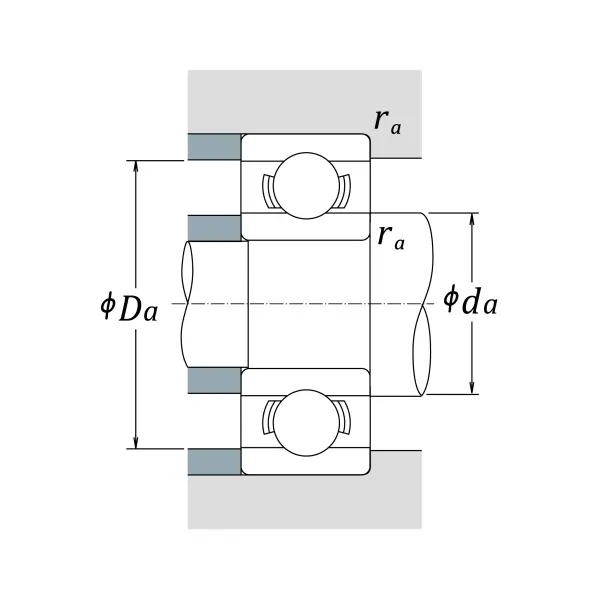

ras max
0.300 mm
