NTN 7000HTDF/GM
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
39000 RPM
Limiting Speed - Grease
29000 RPM
Configuration
Two
Preload
Medium
Static Load Rating
6300 N
Dynamic Load Rating
6100 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

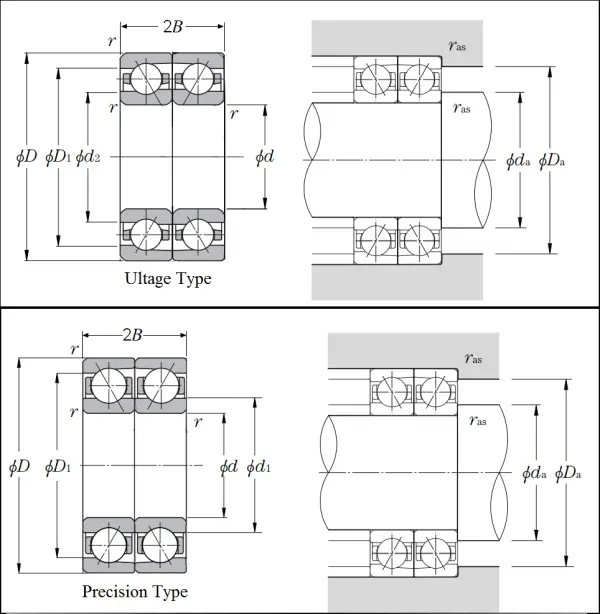

Dimensional Specifications
d
10.000 mm
D
26.000 mm
B
8.000 mm
2B
16.000 mm
d1
15.500 mm
D1
20.300 mm
D2
22.700 mm
r
0.300 mm
r1
0.150 mm
Contact Angle
30 º
da min
12.500 mm
Da max
24.800 mm
ras max
0.300 mm
r1as max
0.150 mm
