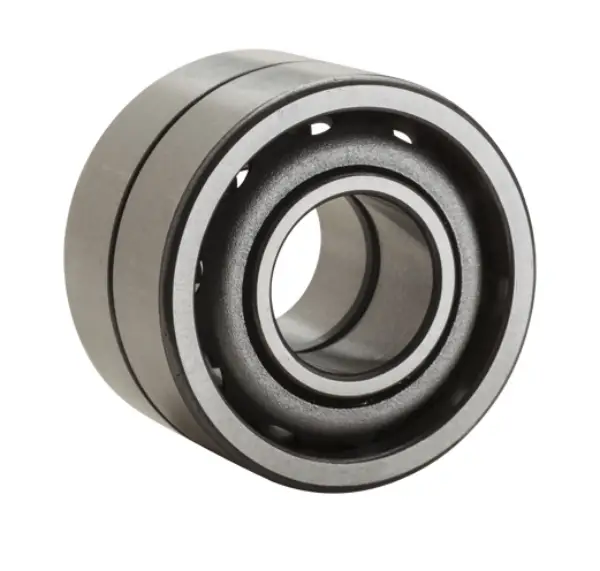

NTN 7002CDB+10D3P5V4
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 5
Configuration
Two
Enclosure
Open
Weight
0.087 kg
Operating Temperature Range
-40 to 120 ºC

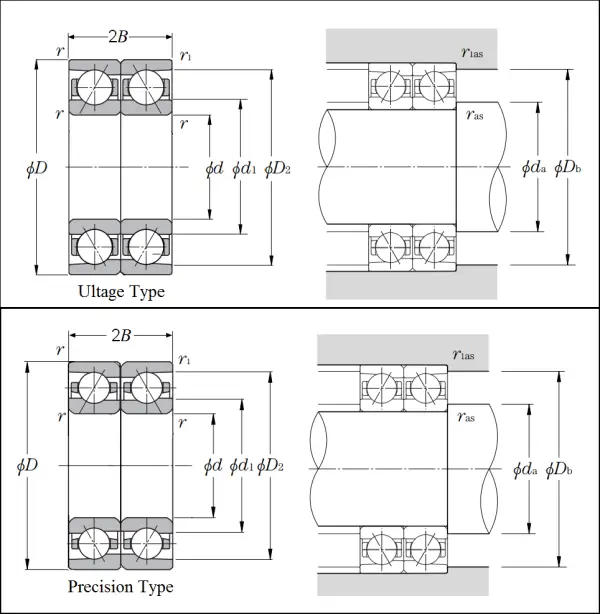

Dimensional Specifications
d
15.000 mm
D
32.000 mm
B
9.000 mm
2B
28.000 mm
r
0.300 mm
r1
0.150 mm
