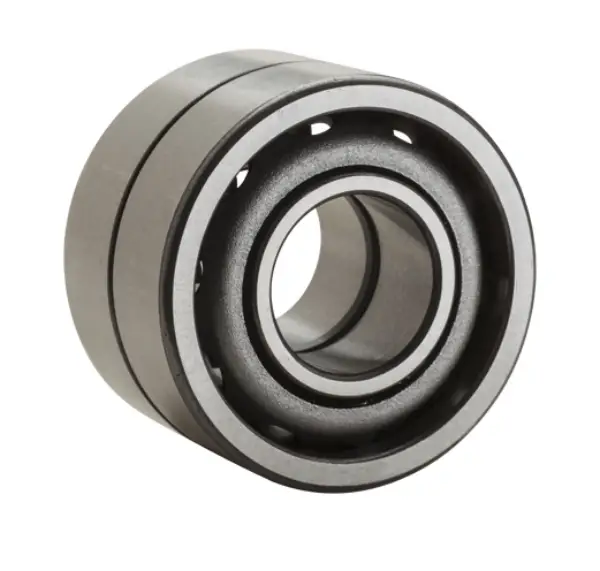

NTN 7003CDB/GNP5
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
57680 RPM
Limiting Speed - Grease
36080 RPM
Precision
ISO Class 5
Configuration
Two
Preload
Normal
Enclosure
Open
Weight
0.070 kg
Operating Temperature Range
-40 to 120 ºC

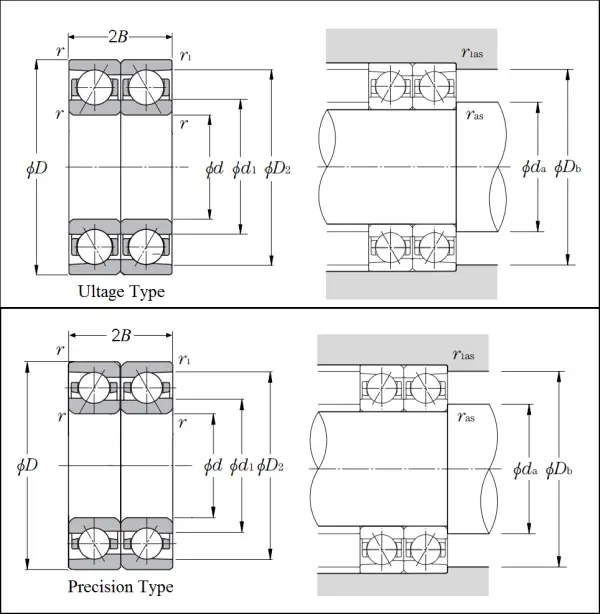

Dimensional Specifications
d
17.000 mm
D
35.000 mm
B
10.000 mm
2B
20.000 mm
d1
23.000 mm
d2
21.600 mm
D1
29.000 mm
D2
32.000 mm
r
0.300 mm
r1
0.150 mm
Contact Angle
15 º
da min
19.500 mm
Da max
32.500 mm
Db max
33.800 mm
ras max
0.300 mm
r1as max
0.150 mm
