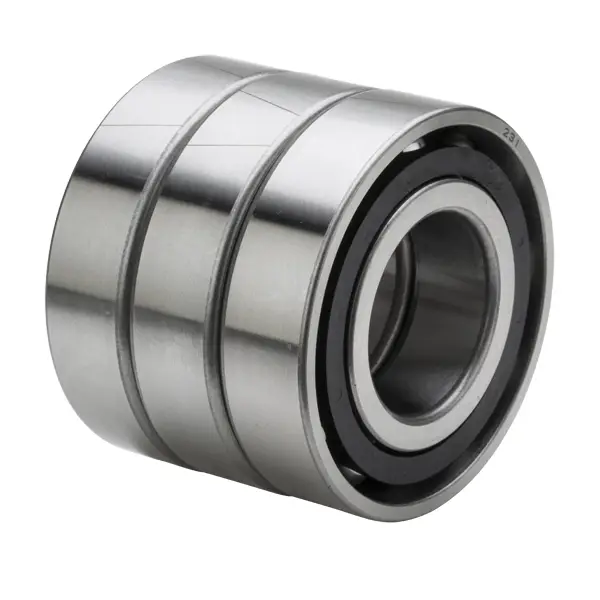

NTN 7003CDBT+10/GLP5
Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 5
Configuration
Three
Preload
Light
Enclosure
Open
Weight
0.135 kg
Operating Temperature Range
-40 to 120 ºC

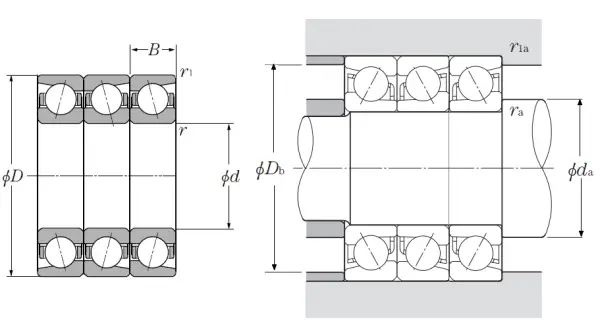

Dimensional Specifications
d
17.000 mm
D
35.000 mm
B
10.000 mm
Total Width
40.000 mm
d1
23.000 mm
d2
21.600 mm
D1
29.000 mm
D2
32.000 mm
r
0.300 mm
r1
0.150 mm
Contact Angle
15 º
da min
19.500 mm
Db max
33.800 mm
ras max
0.300 mm
r1as max
0.150 mm
