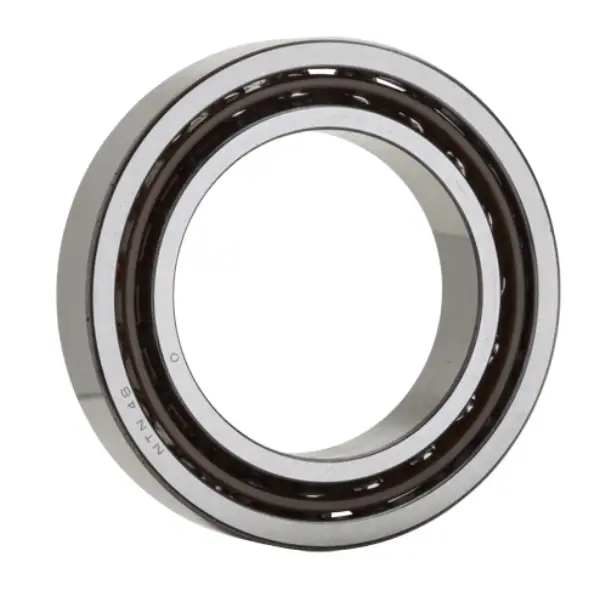

NTN 7010B
Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 0
Configuration
One
Enclosure
Open
Weight
0.299 kg
Operating Temperature Range
-40 to 120 ºC

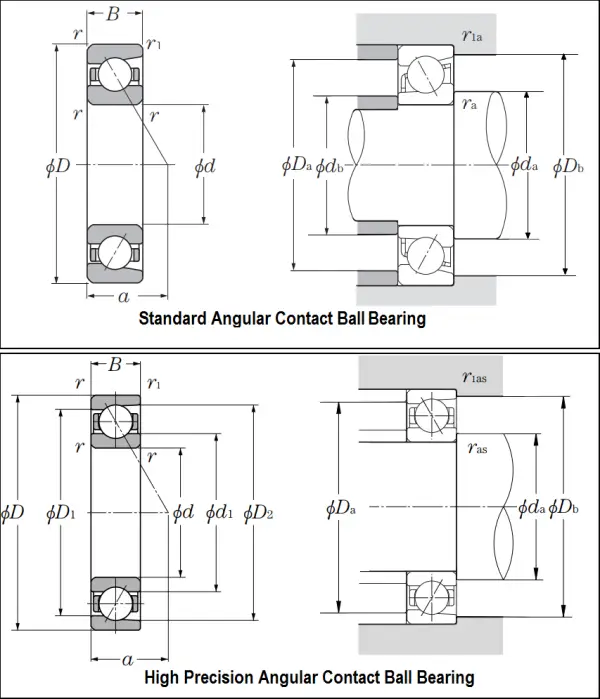

Dimensional Specifications
d
50.000 mm
D
80.000 mm
B
16.000 mm
r
1.000 mm
Contact Angle
40 º
Double Row Width
32.000 mm
Triple Row Width
48.000 mm
Quadruple Row Width
64.000 mm
