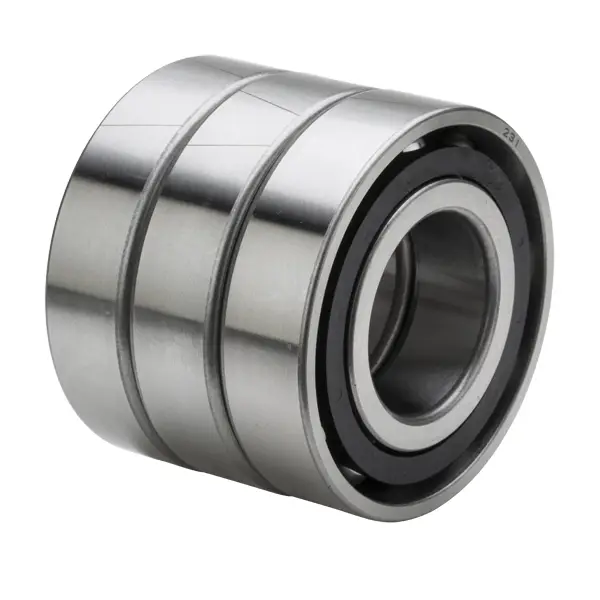

NTN 7016CDBT/GMP4
Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
9150 RPM
Limiting Speed - Grease
5700 RPM
Precision
ISO Class 4
Configuration
Three
Preload
Medium
Enclosure
Open
Weight
2.499 kg
Operating Temperature Range
-40 to 120 ºC

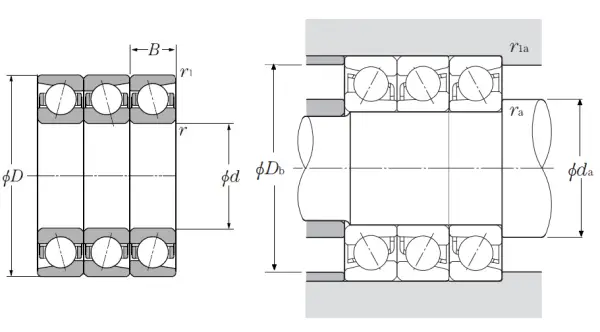

Dimensional Specifications
d
80.000 mm
D
125.000 mm
B
22.000 mm
Total Width
66.000 mm
d1
95.200 mm
d2
91.700 mm
D1
109.800 mm
D2
116.900 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
15 º
da min
87.000 mm
Db max
120.500 mm
ras max
1.000 mm
r1as max
0.600 mm
