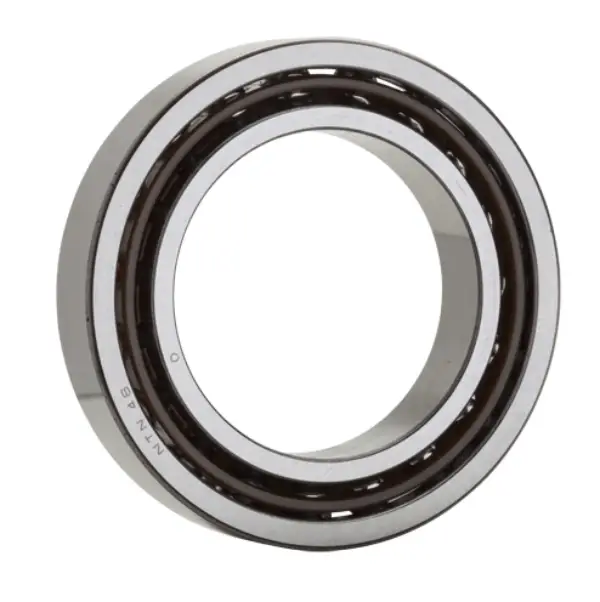

NTN 7018BG
Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Ball Material
Steel
Precision
ISO Class 0
Configuration
One
Enclosure
Open
Weight
1.328 kg
Operating Temperature Range
-40 to 120 ºC

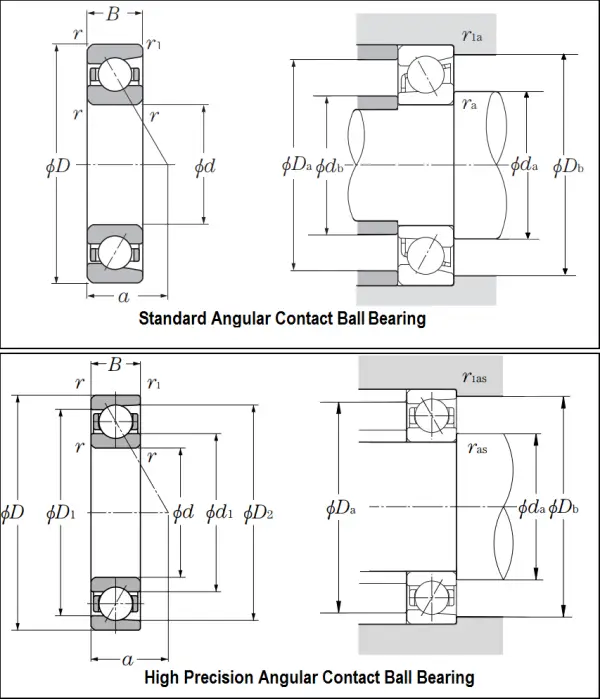

Dimensional Specifications
d
90.000 mm
D
140.000 mm
B
24.000 mm
r
1.500 mm
Contact Angle
40 º
Double Row Width
48.000 mm
Triple Row Width
72.000 mm
Quadruple Row Width
96.000 mm
