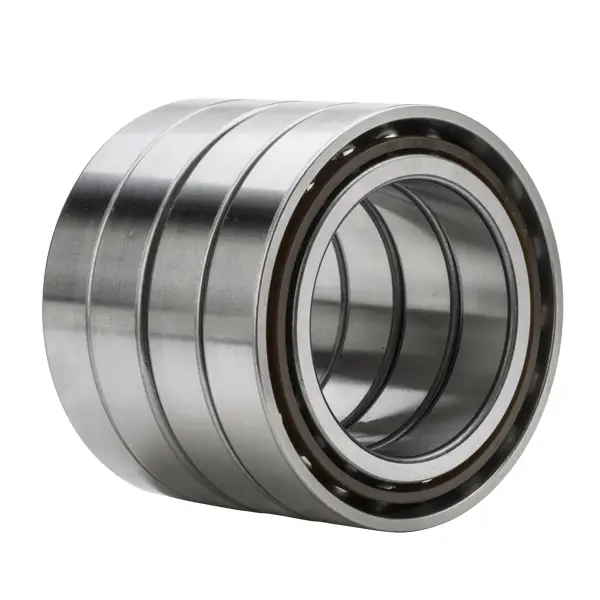

NTN 7019UDTBT/GMP4
Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
5880 RPM
Limiting Speed - Grease
4320 RPM
Precision
ISO Class 4
Configuration
Four
Preload
Medium
Enclosure
Open
Weight
4.880 kg
Operating Temperature Range
-40 to 120 ºC

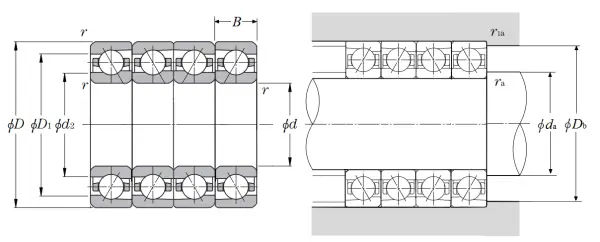

Dimensional Specifications
d
95.000 mm
D
145.000 mm
B
24.000 mm
Total Width
96.000 mm
d1
111.900 mm
D1
128.200 mm
D2
136.000 mm
r
1.500 mm
r1
0.600 mm
Contact Angle
30 º
da min
103.500 mm
Da max
136.500 mm
Db max
139.500 mm
ras max
1.500 mm
r1as max
1.000 mm
