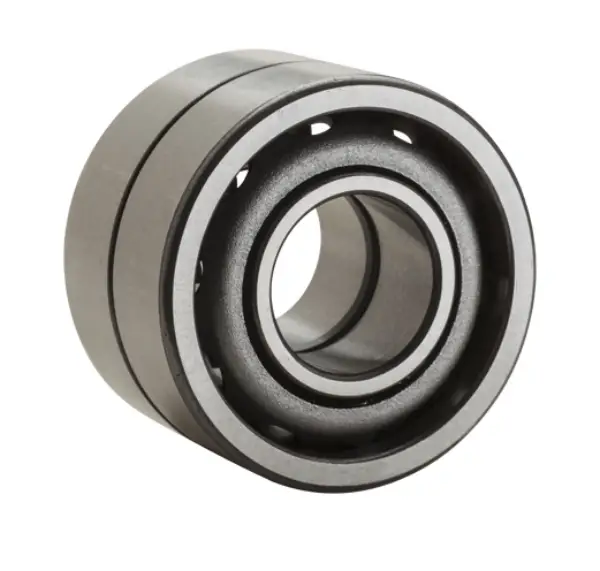

NTN 7022CDB/GNP5
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
10720 RPM
Limiting Speed - Grease
6720 RPM
Precision
ISO Class 5
Configuration
Two
Preload
Normal
Enclosure
Open
Weight
3.884 kg
Operating Temperature Range
-40 to 120 ºC

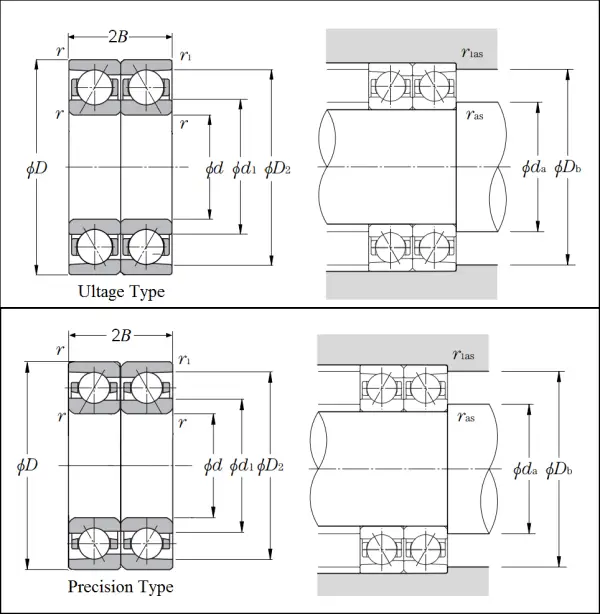

Dimensional Specifications
d
110.000 mm
D
170.000 mm
B
28.000 mm
2B
56.000 mm
d1
130.200 mm
d2
125.400 mm
D1
149.900 mm
D2
159.400 mm
r
2.000 mm
r1
1.000 mm
Contact Angle
15 º
da min
120.000 mm
Da max
160.000 mm
Db max
164.500 mm
ras max
2.000 mm
r1as max
1.000 mm
