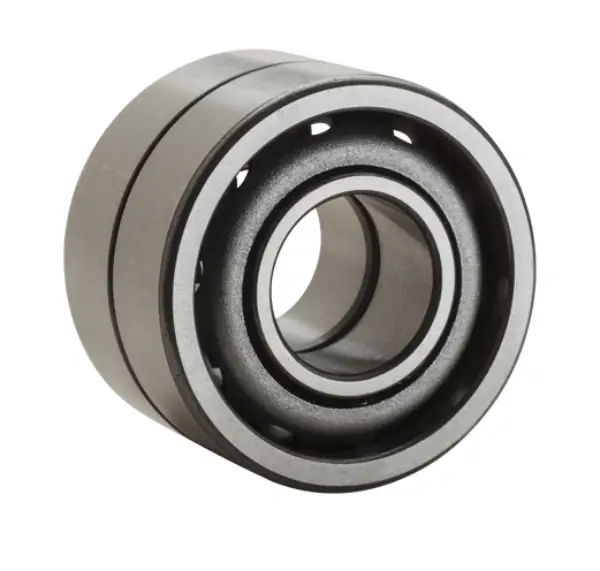

NTN 7024CDB/GNP4
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
6240 RPM
Precision
ISO Class 4
Configuration
Two
Preload
Normal
Enclosure
Open
Weight
4.144 kg
Operating Temperature Range
-40 to 120 ºC

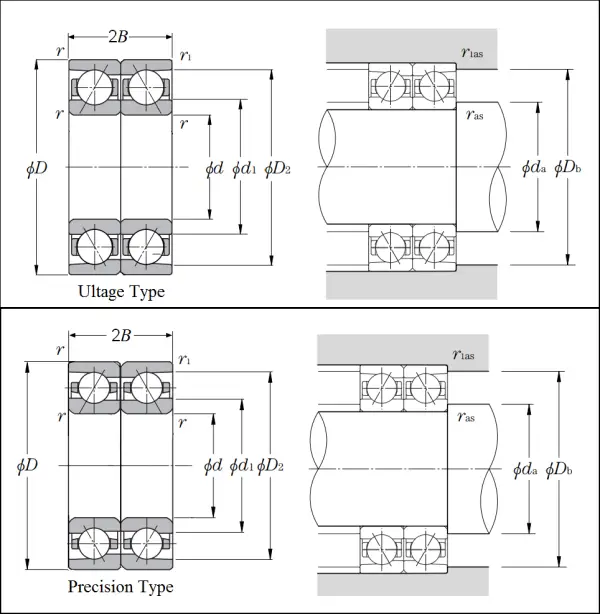

Dimensional Specifications
d
120.000 mm
D
180.000 mm
B
28.000 mm
2B
56.000 mm
d1
140.200 mm
d2
135.400 mm
D1
159.900 mm
D2
169.400 mm
r
2.000 mm
r1
1.000 mm
Contact Angle
15 º
da min
130.000 mm
Da max
170.000 mm
Db max
174.500 mm
ras max
2.000 mm
r1as max
1.000 mm
