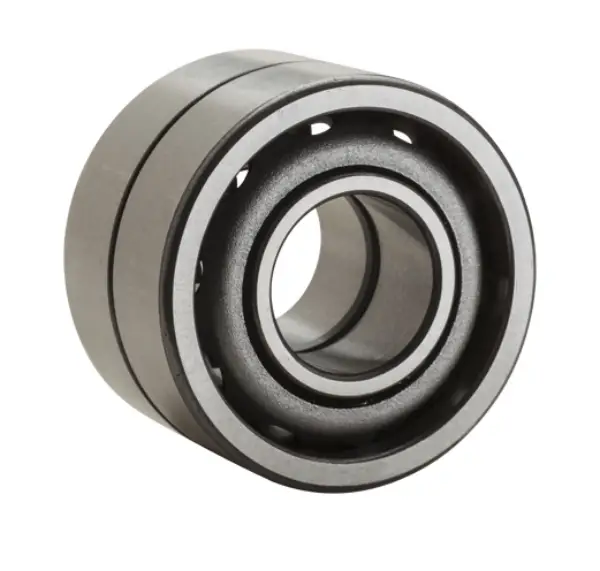

NTN 7024CDB+14P4V1
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3800 RPM
Limiting Speed - Grease
2900 RPM
Precision
ISO Class 0
Configuration
Two
Preload
Normal
Static Load Rating
216000 N
Dynamic Load Rating
168000 N
Enclosure
Open
Weight
4.249 kg
Operating Temperature Range
-40 to 120 ºC

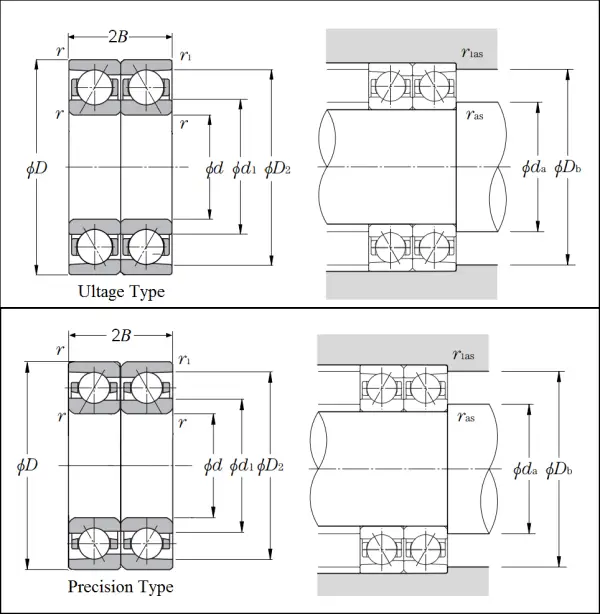

Dimensional Specifications
d
120.000 mm
D
180.000 mm
B
28.000 mm
2B
70.000 mm
d1
139.000 mm
D2
168.800 mm
r
2.000 mm
r1
1.000 mm
Contact Angle
15 º
da min
130.000 mm
Da max
170.000 mm
Db max
174.500 mm
ras max
2.000 mm
r1as max
1.000 mm
