NTN 70M8DF/GMP5
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 5
Configuration
Two
Preload
Medium
Static Load Rating
4400 N
Dynamic Load Rating
4400 N
Enclosure
Open
Weight
0.013 kg
Operating Temperature Range
-40 to 120 ºC

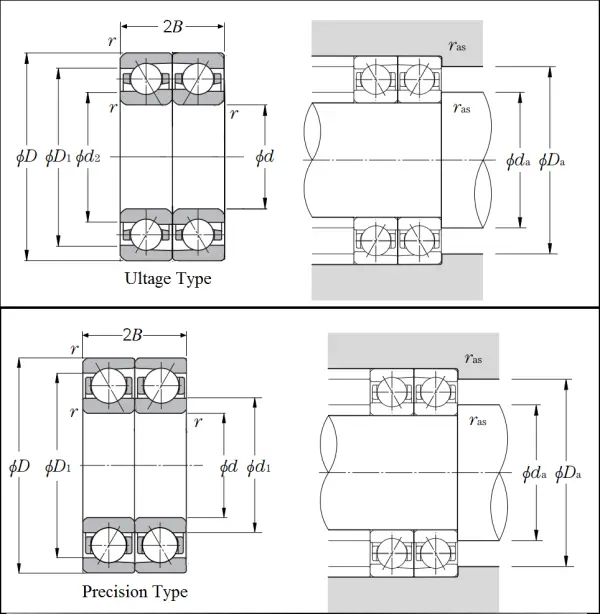

Dimensional Specifications
d
8.000 mm
D
22.000 mm
B
7.000 mm
2B
14.000 mm
d1
12.800 mm
D1
17.200 mm
D2
19.100 mm
r
0.300 mm
r1
0.150 mm
Contact Angle
30 º
Da max
0.000 mm
