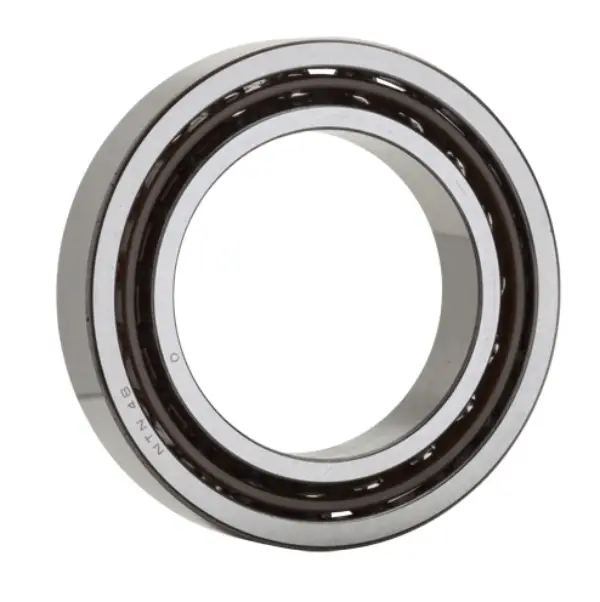

NTN 7122TLVG
Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Material
Brass
Precision
ISO Class 0
Configuration
One
Static Load Rating
72750 N
Dynamic Load Rating
81970 N
Enclosure
Open
Weight
2.400 kg
Operating Temperature Range
-40 to 120 ºC

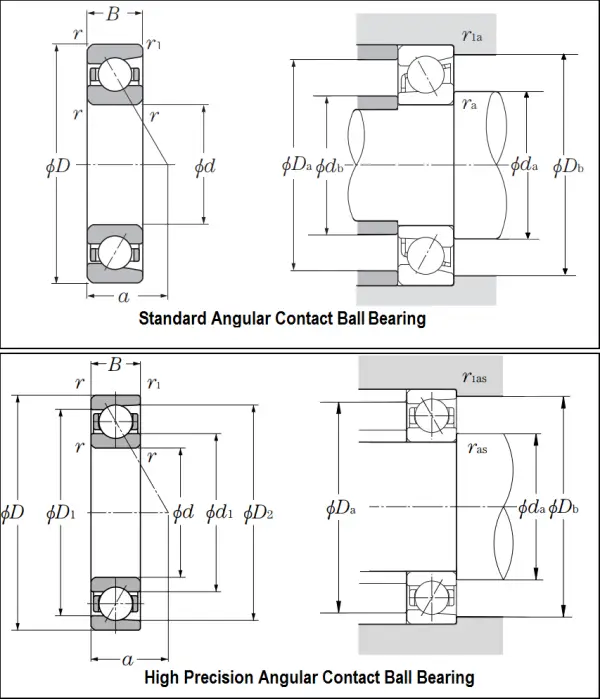

Dimensional Specifications
d
110.000 mm
D
170.000 mm
B
28.000 mm
r
2.030 mm
Contact Angle
30 º
Double Row Width
56.000 mm
Triple Row Width
84.000 mm
Quadruple Row Width
112.000 mm
