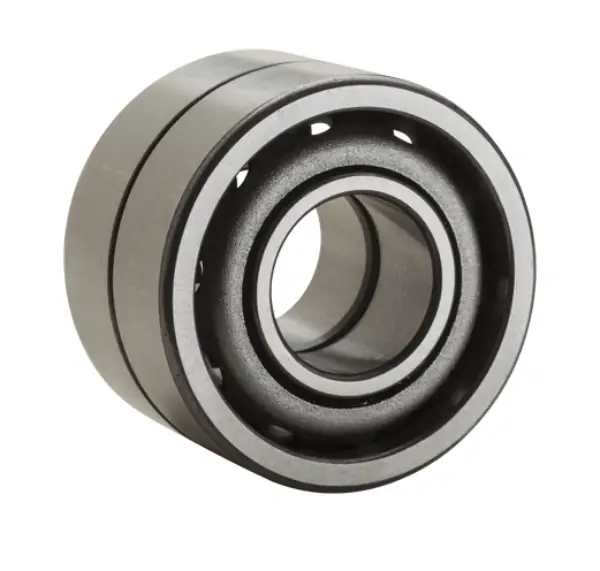

NTN 7204CDF/GNP5
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
26400 RPM
Limiting Speed - Grease
20400 RPM
Precision
ISO Class 5
Configuration
Two
Preload
Normal
Enclosure
Open
Weight
0.198 kg
Operating Temperature Range
-40 to 120 ºC

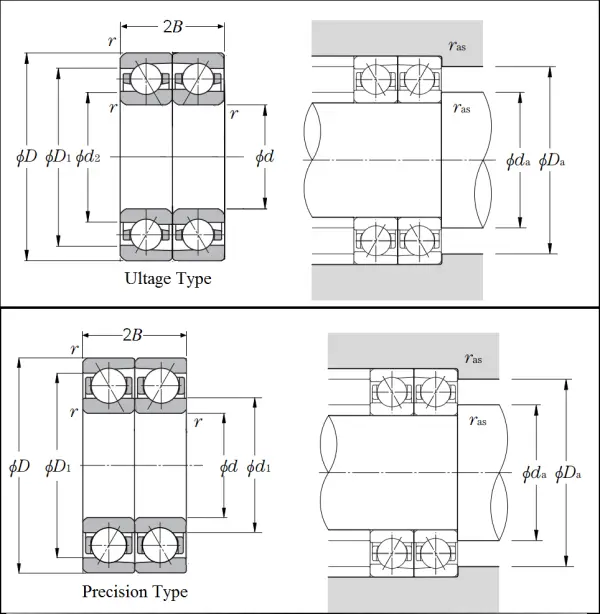

Dimensional Specifications
d
20.000 mm
D
47.000 mm
B
14.000 mm
2B
28.000 mm
d1
29.400 mm
D1
39.400 mm
D2
42.800 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
15 º
da min
25.500 mm
Da max
41.500 mm
ras max
1.000 mm
r1as max
0.600 mm
