NTN 7205HTDF/GH
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
19000 RPM
Limiting Speed - Grease
14000 RPM
Configuration
Two
Preload
Heavy
Static Load Rating
28800 N
Dynamic Load Rating
20200 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

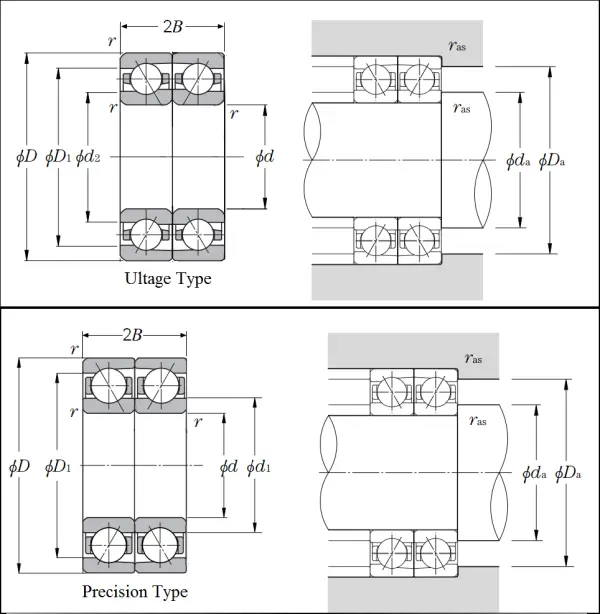

Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
15.000 mm
2B
30.000 mm
d1
35.000 mm
D1
43.000 mm
D2
47.200 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
30 º
da min
30.500 mm
Da max
47.500 mm
ras max
1.000 mm
r1as max
0.600 mm
