NTN 7206CDTP4
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Enclosure
Open
Weight
0.382 kg
Operating Temperature Range
-40 to 120 ºC

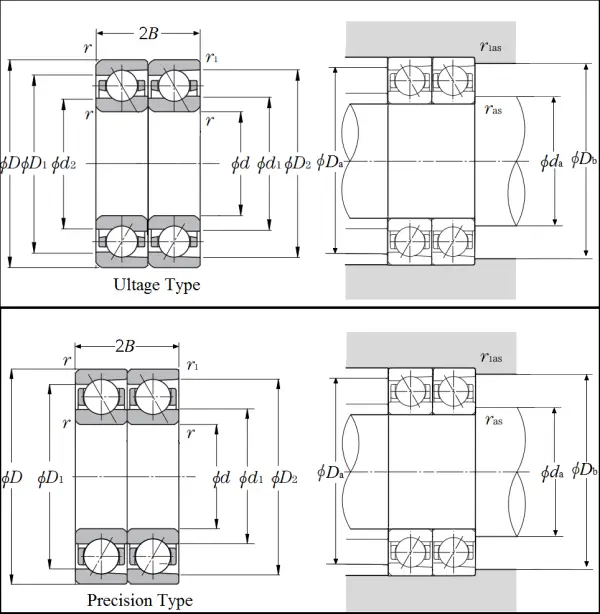

Dimensional Specifications
d
30.000 mm
D
62.000 mm
B
16.000 mm
2B
32.000 mm
d1
40.600 mm
D1
52.200 mm
D2
56.400 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
15 º
da min
35.500 mm
Da max
56.500 mm
Db max
57.500 mm
ras max
1.000 mm
r1as max
0.600 mm
