NTN 7206HTDF/GH
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
16000 RPM
Limiting Speed - Grease
12000 RPM
Configuration
Two
Preload
Heavy
Static Load Rating
41500 N
Dynamic Load Rating
28100 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

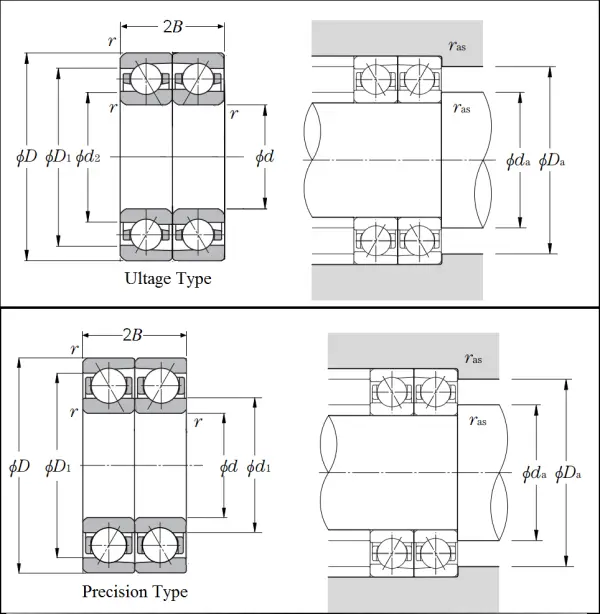

Dimensional Specifications
d
30.000 mm
D
62.000 mm
B
16.000 mm
2B
32.000 mm
d1
41.700 mm
D1
51.400 mm
D2
56.300 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
30 º
da min
35.500 mm
Da max
56.500 mm
ras max
1.000 mm
r1as max
0.600 mm
