NTN 7207BT1DTP4V1
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Enclosure
Open
Weight
0.854 kg
Operating Temperature Range
-40 to 120 ºC

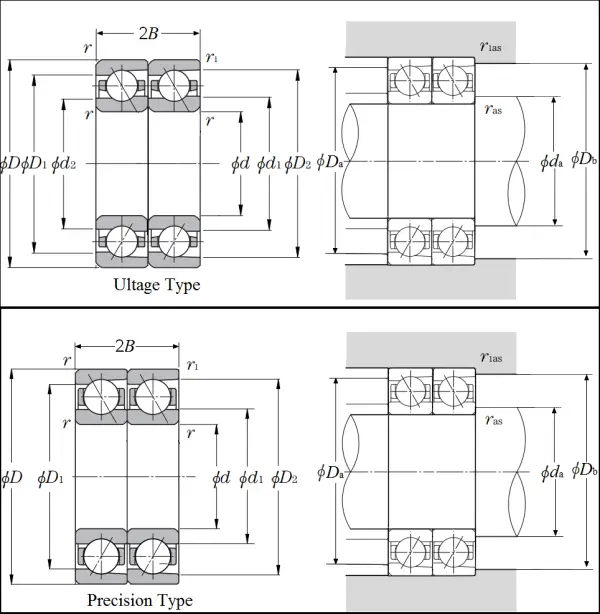

Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
17.000 mm
2B
34.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
40 º
