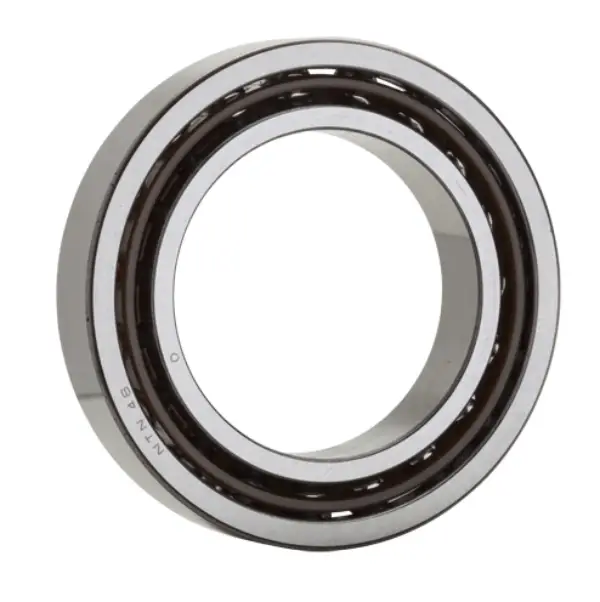

NTN 7212
Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
8800 RPM
Limiting Speed - Grease
6600 RPM
Precision
ISO Class 0
Configuration
One
Static Load Rating
49000 N
Dynamic Load Rating
61500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

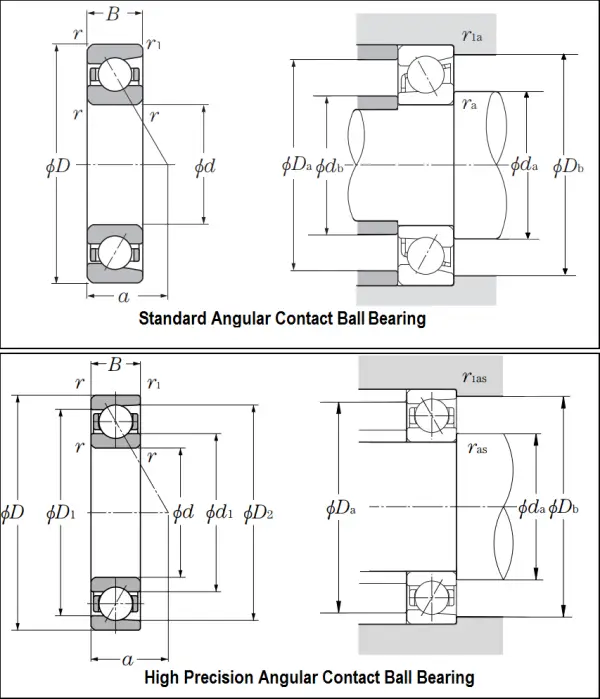

Dimensional Specifications
d
60.000 mm
D
110.000 mm
B
22.000 mm
r
1.500 mm
r1
1.000 mm
Contact Angle
30 º
a (Load Center)
36.000 mm
da min
68.500 mm
db min
65.500 mm
Da max
101.500 mm
Db max
104.500 mm
ras max
1.500 mm
r1as max
1.000 mm
Double Row Width
44.000 mm
Triple Row Width
66.000 mm
Quadruple Row Width
88.000 mm
