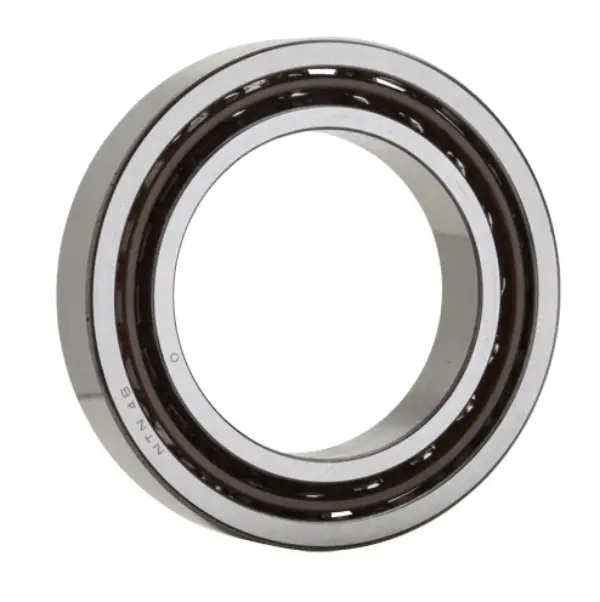

NTN 7215BAT1BG/GNP5
Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic
Ball Material
Steel
Precision
ISO Class 5
Configuration
One
Preload
Normal
Enclosure
Open
Weight
1.159 kg
Operating Temperature Range
-40 to 120 ºC

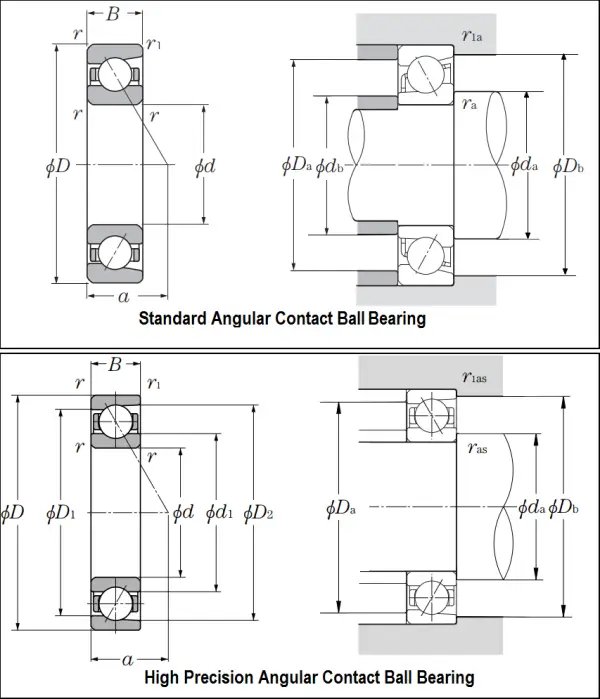

Dimensional Specifications
d
75.000 mm
D
130.000 mm
B
25.000 mm
Contact Angle
40 º
Double Row Width
50.000 mm
Triple Row Width
75.000 mm
Quadruple Row Width
100.000 mm
